TRUNK FLOOR PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829600

Symbol Mark

ac5wzb00000231

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

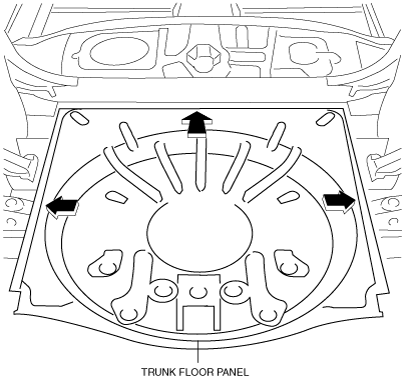

4.  Slide the part of trunk floor panel in the direction of arrow shown in the figure, and then insert it.

ac5wzb00000148

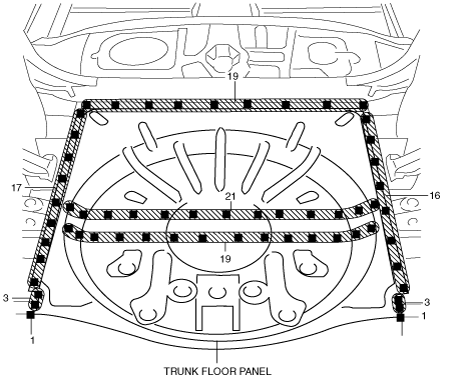

5.  Plug weld the 96 locations shown in the figure, then install the trunk floor panel.

ac5wzb00000143
