COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]

id098008957100

Symbol Mark

ac5wzb00000050

Removal Procedure

1.  Drill the 9 locations indicated by (A) shown in the figure.

2.  Drill the 2 locations by (B) from the front wheel housing side shown in the figure.

3.  Drill the 2 locations indicated by (C) from the inside shown in the figure.

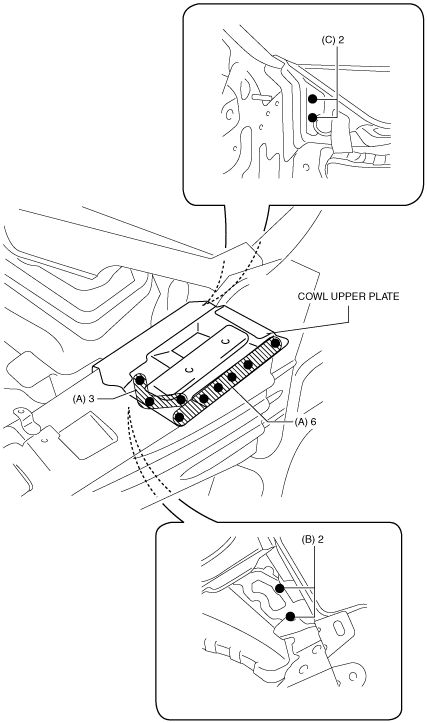

ac5wzb00000051

4.  Remove the cowl upper plate.
