WIPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008968800

Symbol Mark

ac5wzb00000025

Removal Procedure

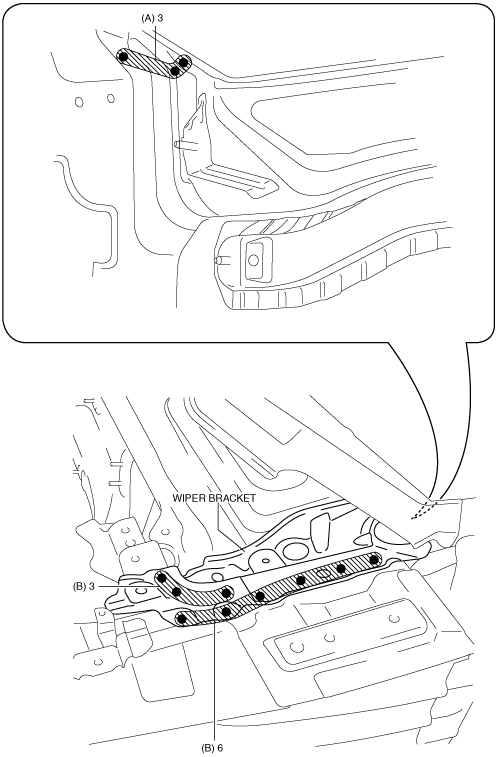

1.  Drill the 3 locations indicated by (A) from the inside shown in the figure.

2.  Drill the 9 locations indicated by (B) shown in the figure.

ac5wzb00000026

3.  Remove the wiper bracket.
