BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008999600

Symbol Mark

ac5wzb00000206

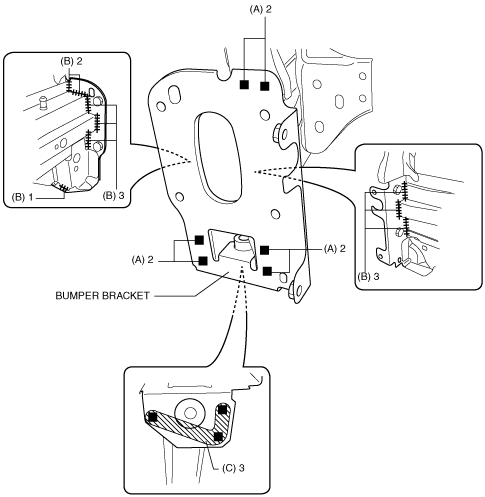

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding 6 locations indicated by (A) and 3 locations indicated by (C) shown in the figure, before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 6 locations indicated by (A) shown in the figure.

ac5wzb00000245

5.  Continuos weld the 9 locations indicated by (B) shown in the figure from the front wheel housing and engine room.

Note

•  A flange part is fixed by a hand vise, and where a welded area is press-fitted, welding is performed so that a clearance does not open in the part welded.

6.  Plug weld the 3 locations indicated by (C) shown in the figure, then install the bumper bracket.
