DUMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009745700

• After repairing the body, attach the dumping sheet to the location shown in the figure for noise insulation.

VIN: JMZ**(L.H.D.), JM8**, KE10**

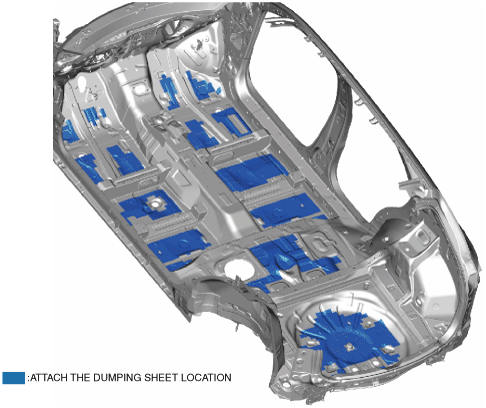

Vehicle with i-ELOOP

ac5wzb00000339

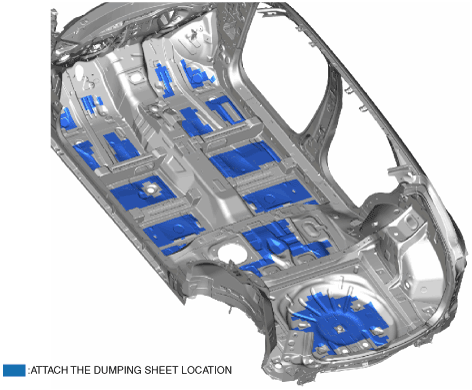

Vehicle without i-ELOOP

ac5wzb00000340

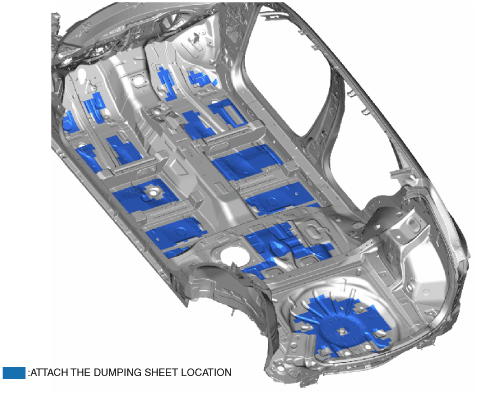

VIN: JMZ**(R.H.D.), JM0**, JM6**

ac5wzb00000341
