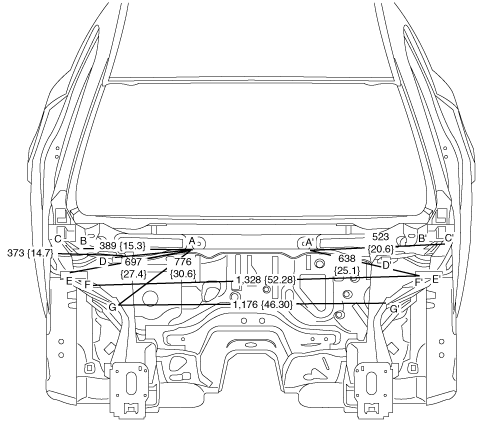

FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010740600
ac5wzb00000297
|

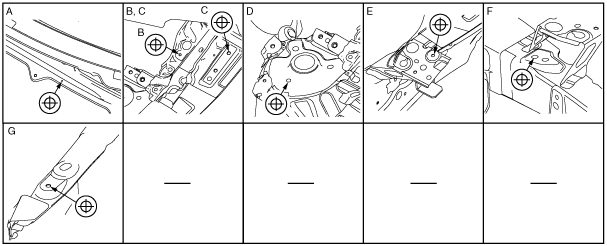

ac5wzb00000161
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Cowl panel installation hole
|
Φ5 {0.2}
|
|
B
|
Wiper bracket datum hole
|
Φ7 {0.3}
|
|
C
|
Bonnet hinge installation hole
|
Φ10 {0.39}
|
|
D
|
Front suspension upper mounting installation hole
|
Φ10.2 {0.402}
|
|
E
|
Front fender panel installation hole
|
Φ7 {0.3}
|
|
F
|
Apron reinforcement lower datum hole
|
Φ10 {0.39}
|
|
G
|
Shroud upper member installation hole
|
Φ7 {0.3}
|
