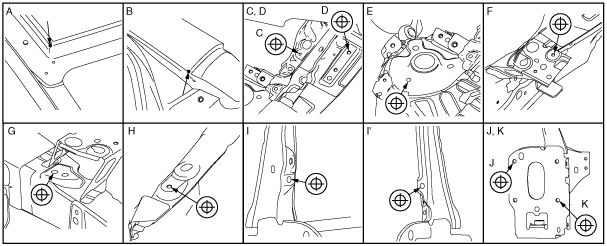

FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010740700

ac5wzb00000179

ac5wzb00000167

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Roof seamless location

-

B

Cabin side outer frame (front pillar outer) projection location

-

C

Wiper bracket datum hole

Φ7 {0.3}

D

Bonnet hinge installation hole

Φ10 {0.39}

E

Front suspension upper mounting installation hole

Φ10.2 {0.402}

F

Front fender panel installation hole

Φ7 {0.3}

G

Apron reinforcement lower datum hole

Φ10 {0.39}

H

Front fender panel installation hole

Φ7 {0.3}

I

Side stay datum hole

Φ10 {0.39}

J

Front bumper reinforcement installation hole

Φ12 {0.47}

K

Front bumper reinforcement installation hole

Φ12 {0.47}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Roof seamless location	-
B	Cabin side outer frame (front pillar outer) projection location	-
C	Wiper bracket datum hole	Φ7 {0.3}
D	Bonnet hinge installation hole	Φ10 {0.39}
E	Front suspension upper mounting installation hole	Φ10.2 {0.402}
F	Front fender panel installation hole	Φ7 {0.3}
G	Apron reinforcement lower datum hole	Φ10 {0.39}
H	Front fender panel installation hole	Φ7 {0.3}
I	Side stay datum hole	Φ10 {0.39}
J	Front bumper reinforcement installation hole	Φ12 {0.47}
K	Front bumper reinforcement installation hole	Φ12 {0.47}
