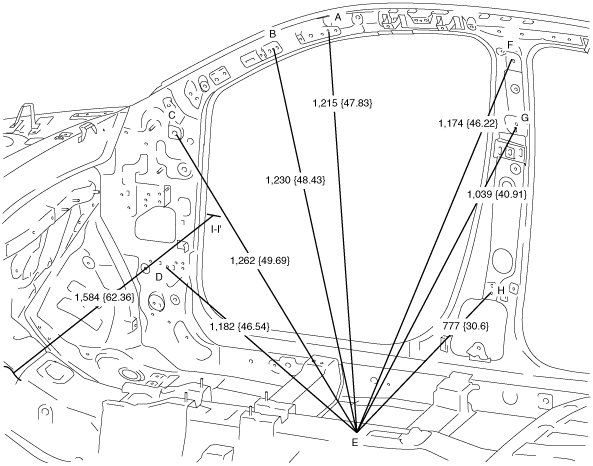

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010743300

ac5wzb00000299

ac5wzb00000172

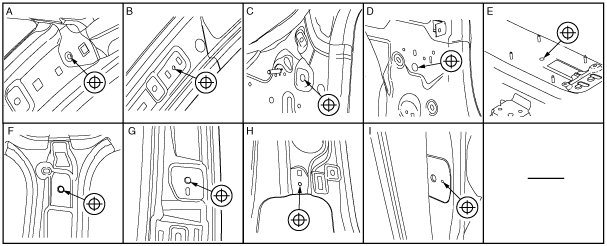

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front pillar inner datum hole

Φ7 {0.3}

B

Front pillar inner datum hole

Φ7 {0.3}

C

Dashboard installation hole

Φ14 {0.55}

D

Side sill inner front datum hole

Φ16 {0.63}

E

Parking brake lever installation hole

Φ12 {0.47}

F

Front seat belt upper anchor installation hole

Φ14 {0.55}

G

Front seat belt upper anchor installation hole

Φ14 {0.55}

H

Center pillar inner datum hole

Φ7 {0.3}

I

Front door checker installation hole

Φ4 {0.2}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front pillar inner datum hole	Φ7 {0.3}
B	Front pillar inner datum hole	Φ7 {0.3}
C	Dashboard installation hole	Φ14 {0.55}
D	Side sill inner front datum hole	Φ16 {0.63}
E	Parking brake lever installation hole	Φ12 {0.47}
F	Front seat belt upper anchor installation hole	Φ14 {0.55}
G	Front seat belt upper anchor installation hole	Φ14 {0.55}
H	Center pillar inner datum hole	Φ7 {0.3}
I	Front door checker installation hole	Φ4 {0.2}
