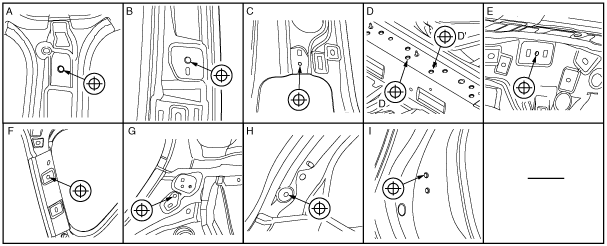

ROOM STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010743400

ac5wzb00000300

ac5wzb00000173

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front seat belt upper anchor installation

Φ14 {0.55}

B

Front seat belt upper anchor installation

Φ14 {0.55}

C

Center pillar inner datum hole

Φ7 {0.3}

D

Rear seat installation hole

Φ14 {0.55}

E

Rear pillar inner datum hole

Φ7 {0.3}

F

C-pillar trim installation hole

Φ10 {0.39}

G

Trunk side trim installation hole

Φ8.6 {0.34}

H

Rear pillar inner datum hole

Φ8.6 {0.34}

I

Rear door striker installation hole

Φ13 {0.51}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front seat belt upper anchor installation	Φ14 {0.55}
B	Front seat belt upper anchor installation	Φ14 {0.55}
C	Center pillar inner datum hole	Φ7 {0.3}
D	Rear seat installation hole	Φ14 {0.55}
E	Rear pillar inner datum hole	Φ7 {0.3}
F	C-pillar trim installation hole	Φ10 {0.39}
G	Trunk side trim installation hole	Φ8.6 {0.34}
H	Rear pillar inner datum hole	Φ8.6 {0.34}
I	Rear door striker installation hole	Φ13 {0.51}
