CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010743600
ac5wzb00000301
|
ac5wzb00000169
|
|

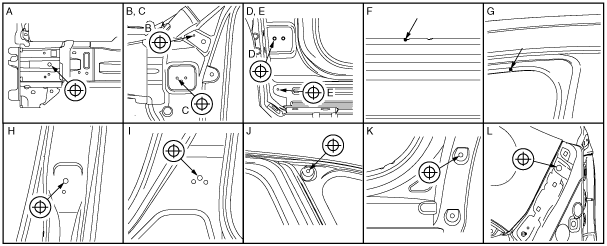

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Front side frame outer datum hole
|
Φ12 {0.47}
|
|
B
|
Front fender panel installation hole
|
Φ10 {0.39}
|
|
C
|
Front door hinge installation hole
|
Φ12 {0.47}
|
|
D
|
Front door hinge installation hole
|
Φ12 {0.47}
|
|
E
|
Front fender panel installation hole
|
Φ11 {0.43}
|
|
F
|
Cabin side frame (outer) notch
|
-
|
|
G
|
Cabin side frame (outer) notch
|
-
|
|
H
|
Rear door hinge installation hole
|
Φ12 {0.47}
|
|
I
|
Rear door hinge installation hole
|
Φ12 {0.47}
|
|
J
|
Quarter window glass installation hole
|
Φ8 {0.3}
|
|
K
|
Rear over fender installation hole
|
Φ10 {0.39}
|
|
L
|
Rear bumper slider installation hole
|
Φ16 {0.63}
|
