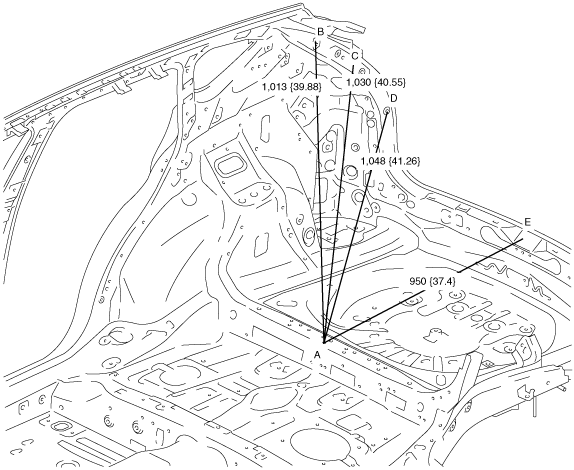

ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010746200
ac5wzb00000302
|
ac5wzb00000176
|
|

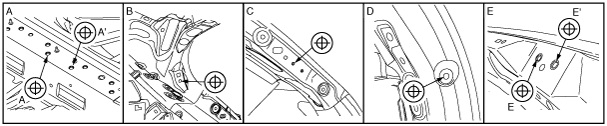

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Rear seat installation hole
|
Φ14 {0.55}
|
|
B
|
D-pillar trim installation hole
|
Φ8.6 {0.34}
|
|
C
|
Liftgate stay damper installation hole
|
Φ7 {0.3}
|
|
D
|
Trunk side trim installation hole
|
Φ8.6 {0.34}
|
|
E
|
Liftgate striker installation hole
|
Φ14 {0.55}
|
