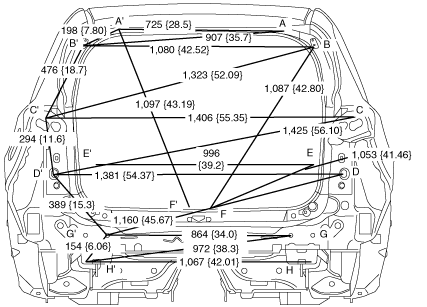

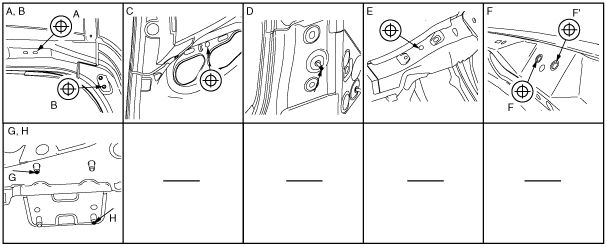

REAR BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010746300
ac5wzb00000303
|
ac5wzb00000304
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
Φ12 {0.47}
|
|
B
|
Liftgate stay damper installation hole
|
Φ10 {0.39}
|
|
C
|
Rear combination light installation slot
|
Φ10 {0.39}
|
|
D
|
Rear bumper installation bolt
|
M6
|
|
E
|
Brace bracket datum hole
|
Φ10 {0.39}
|
|
F
|
Liftgate striker installation hole
|
Φ14 {0.55}
|
|
G
|
Rear bumper reinforcement installation bolt
|
M10
|
|
H
|
Rear bumper reinforcement installation bolt
|
M10
|
