CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300


Front view

ac5wzb00000191
ac5wzb00000305

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
5.0
{0.20}
7.0
{0.27}
3.0
{0.12}
2.0
{0.079}
B
2
4.5
{0.18}
6.0
{0.24}
3.0
{0.12}
-
C
3
4.5
{0.18}
6.4
{0.25}
2.6
{0.10}
2.5
{0.098}
4
1.0
{0.039}
2.8
{0.11}
-0.8
{-0.03}
-
D
5
1.8
{0.055}
3.2
{0.13}
0.4
{0.002}
1.4
{0.055}
E
6
3.7
{0.15}
4.9
{0.19}
2.5
{0.098}
1.2
{0.047}
F
7
0.5
{0.02}
1.8
{0.071}
-
-
8
0.5
{0.02}
1.2
{0.047}
0.2
{0.008}
-
G
9
0
1.6
{0.063}
-1.6
{-0.063}
-
10
0
1.6
{0.063}
-1.6
{-0.063}
-
11
0
1.5
{0.059}
-1.5
{-0.059}
-
H
12
3.5
{0.14}
4.5
{0.18}
2.5
{0.098}
1.0
{0.039}
13
0
1.0
{0.039}
-1.0
{-0.039}
-

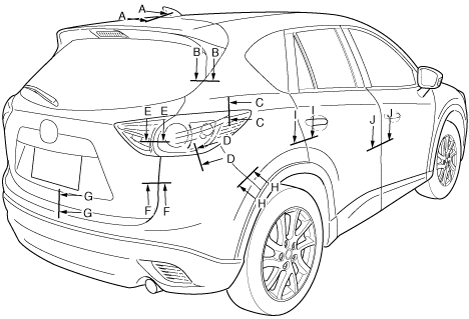

Rear view

ac5wzb00000333
ac5wzb00000306

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
6.0
{0.24}
7.0
{0.28}
5.0
{0.20}
1.2
{0.047}
2
-1.0
{-0.039}
0
-2.0
{-0.079}
-
B
3
4.3
{0.17}
6.8
{0.27}
1.8
{0.071}
2.5
{0.047}
C
4
1.8
{0.071}
3.0
{0.12}
0.6
{0.02}
-
D
5
1.8
{0.071}
3.3
{0.13}
0.3
{0.01}
-
E
6
4.5
{0.18}
6.5
{0.26}
2.5
{0.098}
1.5
{0.059}
7
0
1.8
{0.071}
-1.8
{-0.071}
-
F
8
4.0
{0.16}
6.5
{0.26}
1.5
{0.059}
2.5
{0.098}
G
9
6.0
{0.24}
8.0
{0.31}
4.0
{0.16}
2.0
{0.079}
H
10
0.5
{0.02}
1.8
{0.071}
-
-
11
0.5
{0.02}
1.5
{0.059}
-0.2
{-0.008}
-
I
12
3.5
{0.14}
4.5
{0.18}
2.5
{0.098}
1.0
{0.039}
13
0
1.0
{0.039}
-1.0
{-0.039}
-
J
14
3.5
{0.14}
4.5
{0.18}
2.5
{0.098}
1.0
{0.039}
15
0
1.0
{0.039}
-1.0
{-0.039}
-
