GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5 (WITH i-ELOOP)]

id131704005008

Caution

• Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

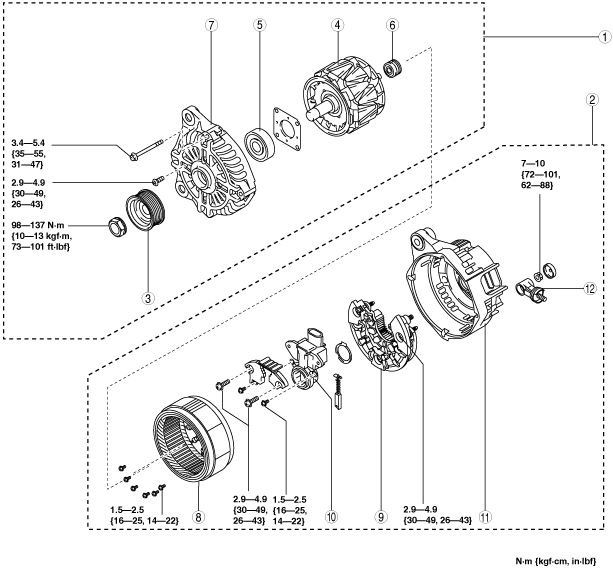

am6zzw00010909

1

Rotor component

2

Stator coil component

3

Pulley

4

Rotor

5

Front bearing

6

Rear bearing

7

Front cover

8

Stator coil

9

Rectifier

10

Regulator component

11

Rear cover

12

Terminal B component

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Regulator component
11	Rear cover
12	Terminal B component
