FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION
id152000001800
1. When replacing the FSC, perform the configuration. (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).)
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

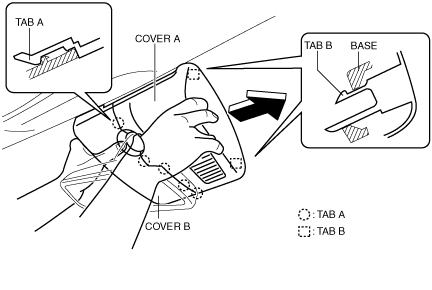

3. Pull cover A in the direction of the arrow shown in the figure and detach tab A of cover A and cover B.
ac5wzw00007759
|
4. Pull cover A in the direction of the arrow shown in the figure, detach tab B of cover A and the base, and remove cover A from the base.
5. Remove the wiring harness from the hook.
ac5wzw00007760
|

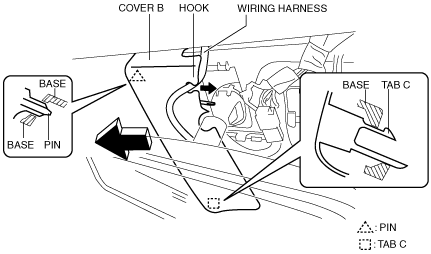

6. Pull cover B in the direction of the arrow shown in the figure, detach the pin and tab C for cover B and the base, and remove cover B from the base.
7. Disconnect the connector.
ac5wzw00007761
|

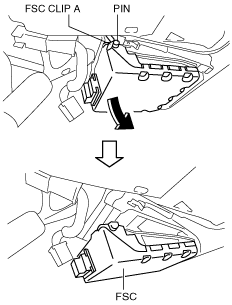

8. Pull the FSC in the direction of the arrow shown in the figure and remove the FSC pin from FSC clip A.
ac5wzw00007762
|

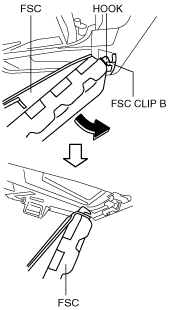

9. Rotate the FSC in the direction of the arrow shown in the figure, remove the FSC hook from FSC clip B, and remove the FSC.
ac5wzw00006187
|
10. Install in the reverse order of removal.
11. If the FSC is replaced, perform the FSC aiming (See FORWARD SENSING CAMERA (FSC) AIMING.).
