CYLINDER HEAD DISASSEMBLY (II)
id011000500500
Special Service Tool (SST)
|
49 0636 100B
Valve spring lifter arm
|
|
49 B012 0A2A
Pivot
|
|
49 JE02 0A2
Universal valve tool
(Europe only)
|
|

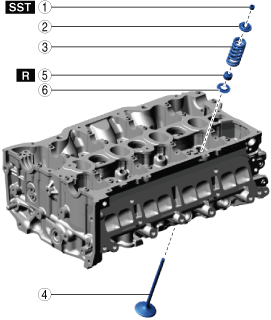

1. Disassemble in the order indicated in the table.
btstze00000004
|
|
1
|
Valve keeper
|
|
2
|
Upper valve spring seat
|
|
3
|
Valve spring
|
|
4
|
Valve
|
|
5
|
Valve seal
(See Valve Seal Disassembly Note.)
|
|
6
|
Lower valve spring seat
|
Valve Keeper Disassembly Note
1. Remove the valve keeper using the SSTs.
When using the SSTs (49 0636 100B, 49 B012 0A2)
bpe1ze00000014
|
When using the SST (49 JE02 0A2) (Europe only)
bpe1ze00000035
|
Valve Seal Disassembly Note
1. Remove the valve seal using the plier.
bpe1ze00000016
|
