TRANSAXLE DISASSEMBLY

id051500175200


Step 1

1.  Assemble the SST (49 G019 0A0) to the SST (49 0107 680A).

bc61um00000001

Bolt used
Part No.: 9YA02 A220 or M12×1.75 length 40 mm {1.6 in}
Tightening torque
88—118 N·m {9.0—12 kgf·m, 65—87 ft·lbf}

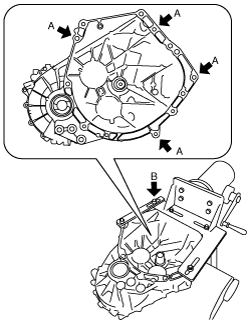

2.  Assemble the MTX to the SST.

bd62zm00000001

Bolt A
Part No.: 99450 1055 or M10×1.25 length 55 mm {2.2 in}, and nut (M10×1.25)
Bolt A tightening torque
38—52 N·m {3.9—5.3 kgf·m, 29—38 ft·lbf}
Bolt B
SST (49 G019 003 part of 49 G019 0A0)
Bolt B tightening torque
88—118 N·m {9.0—12 kgf·m, 65—87 ft·lbf}

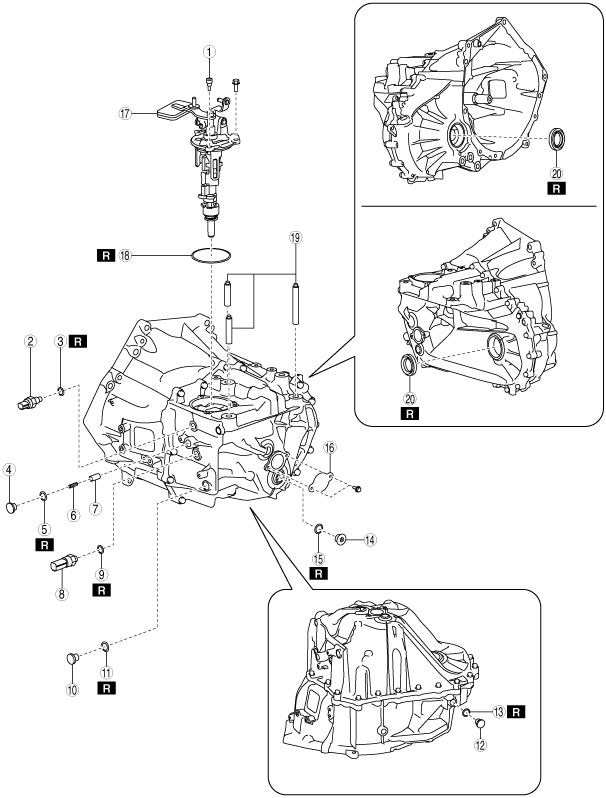

3.  Remove the parts around the MTX in the order shown in the figure.

bd62zm00000002

1
Breather
2
Neutral switch
3
Gasket
4
Plug
5
Gasket
6
Spring
7
Detent ball pin
8
Back-up light switch
9
Gasket
10
Oil level plug
11
Gasket
12
Drain plug
13
Gasket
14
Service hole plug
15
Gasket
16
Service hole plate
17
Shift control module
18
O-ring
19
Stud bolt
20
Oil seal


Step 2

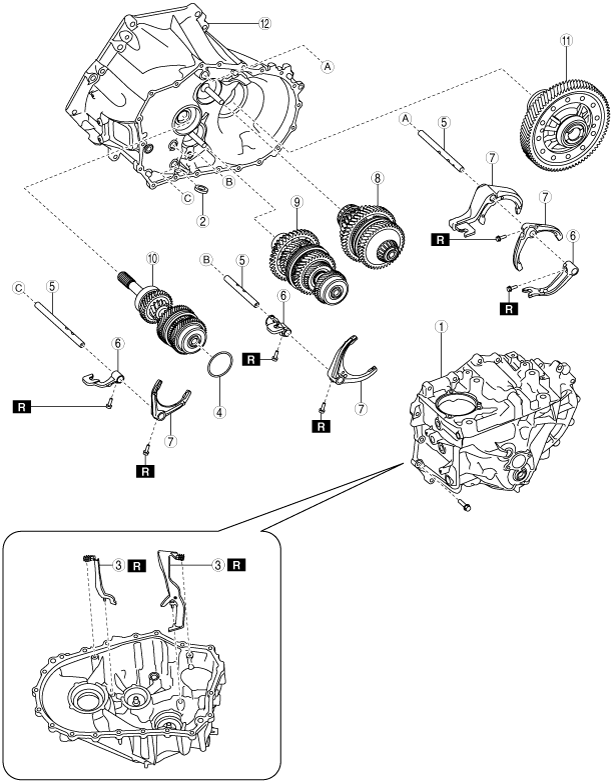

1.  Disassemble the MTX in the order shown in the figure.

bd62zm00000003

1
Transaxle case component
(See Transaxle case component removal note.)
2
Magnet
3
Oil path
4
Shim
5
Shift rod
6
Shift rod end
7
Shift fork
8
Secondary shaft No.2 component
(See Primary shaft component, secondary shaft No.1 component, secondary shaft No.2 component, differential removal note.)
9
Secondary shaft No.1 component
(See Primary shaft component, secondary shaft No.1 component, secondary shaft No.2 component, differential removal note.)
10
Primary shaft component
(See Primary shaft component, secondary shaft No.1 component, secondary shaft No.2 component, differential removal note.)
11
Differential
(See Primary shaft component, secondary shaft No.1 component, secondary shaft No.2 component, differential removal note.)
12
Clutch housing component

2.  Remove the silicone sealant of the transaxle case component and clutch housing component, and clean all the parts.


Transaxle case component removal note

1.  Remove the transaxle case installation bolts.

bd62zm00000178

2.  Insert the bolt through service hole No.1 of the transaxle case, and assemble it to secondary shaft No.1 component.

bd62zm00000004

Bolt
M12×1.5 length 140 mm {5.51 in}

3.  While pulling up the bolt assembled to secondary shaft No.1 component, turn the clip so that the clip opening is aligned with service hole No.2.

bd62zm00000005

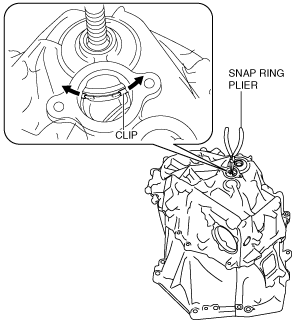

4.  Insert snap ring pliers into service hole No.2, widen the clip, and disconnect secondary shaft No.1 component from the transaxle case.

bd62zm00000006

Note
•  If the clip is widened completely, secondary shaft No.1 component drops slightly and the secondary shaft No.1 component is disconnected from the transaxle case.

5.  Remove the bolt assembled to secondary shaft No.1 component.

6.  Using a crow bar, pry the positions shown in the figure to remove the transaxle case from the clutch housing.

bd62zm00000007


Primary shaft component, secondary shaft No.1 component, secondary shaft No.2 component, differential removal note

•  Perform the following procedure using two people.

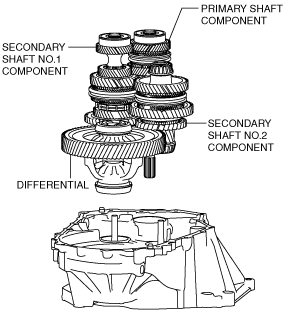

1.  Remove the primary shaft component, secondary shaft No.1 component, secondary shaft No.2 component, and the differential at the same time.

bd62zm00000008

Note
•  One person holds the primary shaft component and secondary shaft No.1 component, and the other person holds secondary shaft No.2 component and the differential, then remove the four parts all together at the same time.
