BLOWN FUSES
[TROUBLESHOOTING HINTS]

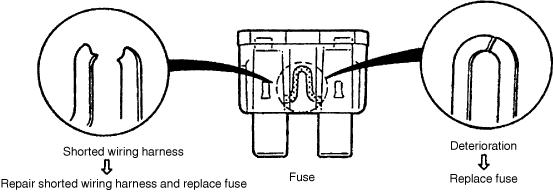

• Inspect condition of fuse.
NO.1 BLOWN FUSES [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0103q8507100
|
1 |
BLOWN FUSES |
|---|---|
|
[TROUBLESHOOTING HINTS]
• Inspect condition of fuse.
|
|
|
|
|
Damaged fuse |
Related wiring harness |
|---|---|
|
MAIN
|
• FAN GE fuse
• ADD FAN GE fuse
• FUEL PUMP fuse
• IG2 fuse
• ENG.+B fuse
• ENG.MAIN fuse
• EVVT fuse
• IG1 relay
• DCDC REG*1
• ENG.SUB fuse
|
|
FAN GE
|
• Cooling fan relay No.2
|
|
ADD FAN GE
|
• Cooling fan relay No.3
|
|
ENGINE.IG1
|
• Fuel pump relay
• PCM
|
|
FUEL PUMP
|
• Fuel pump relay
|
|
STR
|
• Generator
• Starter
|
|
AUDIO2
|
• Ignition relay (ACC_STAB)
|
|
METER2
|
• Ignition relay (IG1_STAB)
|
|
C/U IG1
|
• DCDC converter*2
• DCDC converter (i-ELOOP)*1
• Generator*1
• Ignition relay (IG1_STAB)
|
|
IG2
|
• ACC relay
• Starter relay
|
|
ENG.+B
|
• PCM
• DLC-2
• Current sensor
|
|
ENG.MAIN
|
• Main relay
|
|
EVVT
|
• Electric variable valve timing relay
|
|
ENGINE2
|
• Electric variable valve timing relay
• HO2S
• Exhaust CMP sensor
• Intake CMP sensor
• A/F sensor
• Ignition coil
|
|
ENGINE3
|
• Active air shutter*3
• Cooling fan relay No.1
• Cooling fan relay No.2
• Cooling fan relay No.3
• Electric AT oil pump relay*4
• Forward sensing camera (FSC)
• Engine oil level sensor
|
|
ENGINE4
|
• Purge solenoid valve
• Sub relay
• OCV for hydraulic variable valve timing system
• Engine oil solenoid valve
|
|
ENG.SUB
|
• Sub relay
|
|
DCDC*2
|
• DCDC converter*2
|
|
DCDC REG*1
|
• DCDC converter (i-ELOOP)*1
|
