•  The radiator disperses the engine coolant heat flowing internally by receiving air flow against the vehicle while it is driven or produced by the cooling fan.

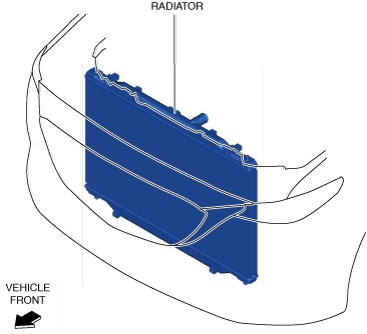

•  The radiator is located at the front part in the engine compartment.

ac5wzn00005251

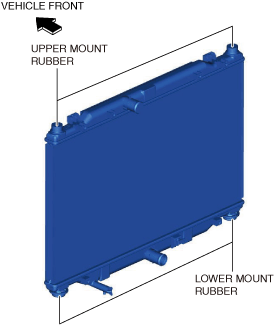

•  Vibration is absorbed via the four supporting mount rubbers attached to the radiator.

ac5wzn00005252

•  A down-flow type radiator has been adopted.

ac5wzn00005253

•  Corrugated fins have been adopted to the core fins.

•  A plastic tank material and aluminum core material have been adopted to achieve weight reduction.
