COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

3.  Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

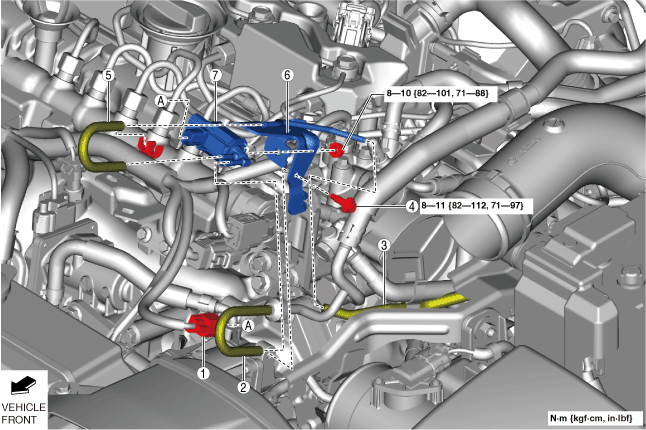

4.  Remove in the order shown in the figure.

ac5wzw00011971

1	Compressor bypass solenoid valve connector
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note)
3	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note)
4	Compressor bypass solenoid valve bracket bolt
5	Vacuum hose No.4 (See Vacuum Hose No.4 Installation Note)
6	Vacuum pipe bracket
7	Compressor bypass solenoid valve

5.  Install in the reverse order of removal.

Vacuum Hose No.4 Installation Note

1.  Install vacuum hose No.4 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00011972

Vacuum pipe bracket side

ac5wzw00011973

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

ac5wzw00011974

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

ac5wzw00011975
