COMMON RAIL [SKYACTIV-D 2.2]
id0114z7707300
Purpose, Function
• Stores high pressure fuel from the supply pump and distributes it to the fuel injectors.

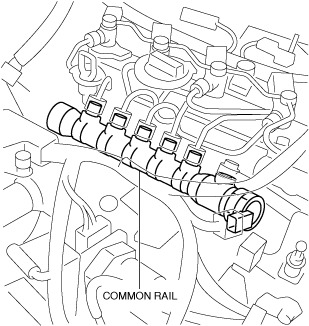

Construction
• The common rail is installed to the engine compartment.
• The common rail has an integrated fuel pressure relief valve.
Fuel pressure relief valve
-
• If the pressure in the common rail exceeds a certain value, fuel is discharged.
