MAIN SILENCER [SKYACTIV-D 2.2]

id0115z7101000

Purpose, Function

• Reduces the exhaust noise.

Construction

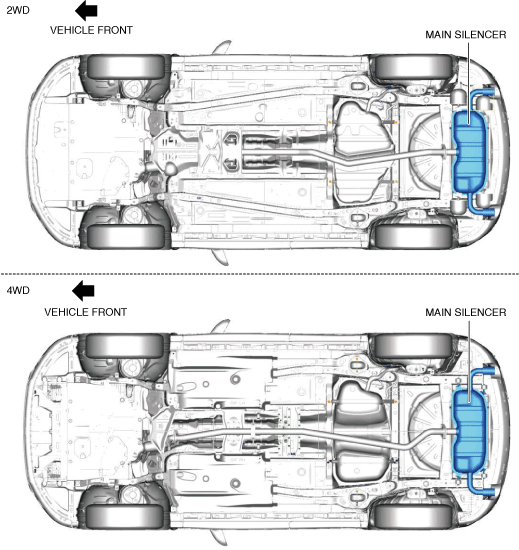

• The main silencer is installed to the vehicle rear, under the trunk compartment.

ac5wzn00003881

• The main silencer consists of the filters and stuffing filters.

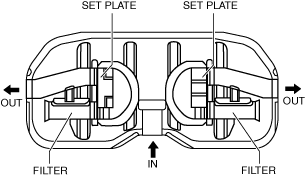

Without SCR system

ac8wzn00000187

With SCR system

ac5uun00003393
