GENERATOR [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0117m1104300


Purpose, Function

•  The generator operates by obtaining drive force from the engine via the drive belt and generates the required electricity for electronic devices.

Construction

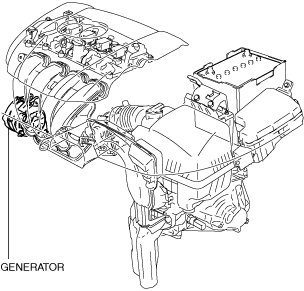

•  The generator is installed on the engine left front side.
am6xun00004694
•  Two delta connection type stator coils have been adopted.
ac5wzn00005459

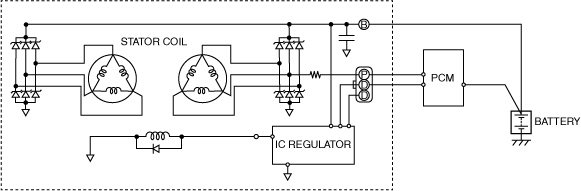

•  The power transistor in the generator is activated by generation control by the PCM and the stabilized output voltage is supplied to the vehicle. (Mazda part number: P31H-*****)
•
am3zzn00007887

Operation

•  For generator control details, refer to CONTROL SYSTEM. (See GENERATOR CONTROL [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
•   The two stator coils form the circuit having a phase difference, and magnetic pull, which operates between the rotor and stator coil by the phase difference, is theoretically eliminated. Due to this, electromagnetic vibration and generator operation noise (electromagnetic noise) have been reduced.
am3uun00001931

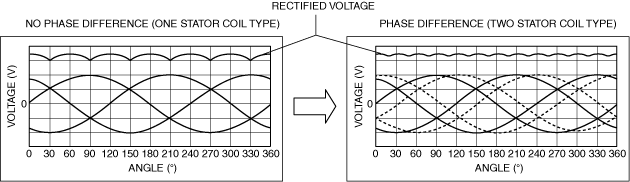

•  Pulsation occurring through voltage rectifying using two stator coils having a phase difference is minimized and stable voltage output is supplied.
am3uun00002198

Fail-safe

DTC

Fail-safe
P2502:00
•  Inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
•  Generator control is inhibited.
P2503:00
P2504:00
