INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7806300

Replacement Part

Pakking

Quantity: 1

Location of use: IAT sensor No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

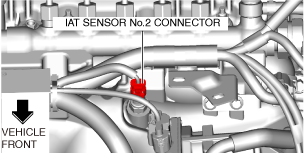

3.  Disconnect the IAT sensor No.2 connector.

ac5wzw00012110

4.  Remove the IAT sensor No.2.

ac5wzw00012111

5.  Install in the reverse order of removal.
