CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

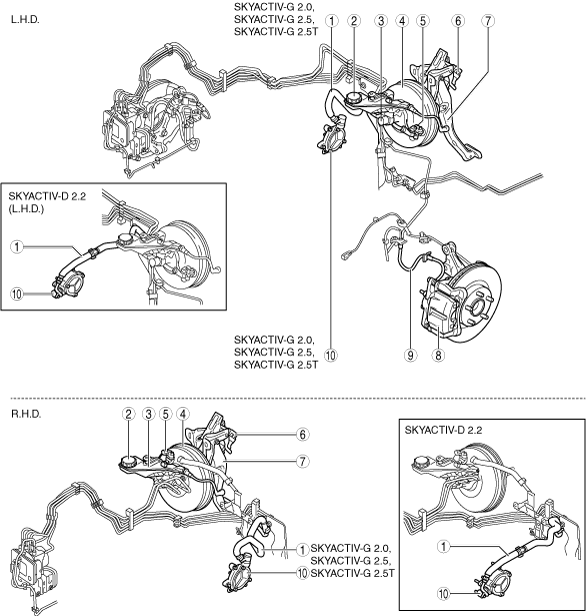

Vehicle Front Side

ac5wzw00014105

1	Vacuum line (See VACUUM LINE INSPECTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See VACUUM LINE INSPECTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See VACUUM LINE INSPECTION [SKYACTIV-G 2.5T].) (See VACUUM LINE INSPECTION [SKYACTIV-D 2.2].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.5T)].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-D 2.2)].) (See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-G 2.5T)].) (See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-D 2.2)].)
2	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].)
5	Power brake unit vacuum sensor (Vehicles with i-stop) (See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION [L.H.D.].) (See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION [R.H.D.].)
6	Brake switch (See BRAKE SWITCH INSPECTION.)
7	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
8	Front brake (See FRONT BRAKE INSPECTION.) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH 2-PISTON FLOATING CALIPER].) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].)
9	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].)
10	Vacuum pump (See VACUUM PUMP INSPECTION.) (See VACUUM PUMP REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See VACUUM PUMP REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

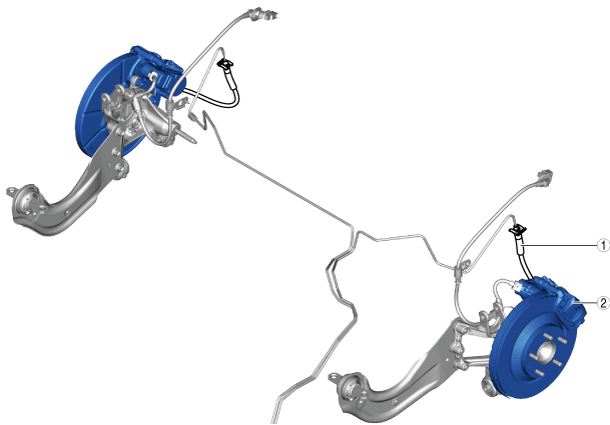

Vehicle Rear Side

ac5wzw00009799

1	Rear brake hose (See REAR BRAKE HOSE REMOVAL/INSTALLATION.)
2	Rear brake (See REAR BRAKE INSPECTION.) (See REAR BRAKE DISC REMOVAL/INSTALLATION.) (See REAR BRAKE DISC PAD REMOVAL/INSTALLATION.) (See REAR BRAKE CALIPER REMOVAL/INSTALLATION.) (See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY.) (See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.)
