ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION
id041200523100
Replacement Part
|
Bolt
Quantity: 2
Location of use: Electric parking brake motor gear unit
|
O-ring
Quantity: 1
Location of use: Electric parking brake motor gear unit
|
1. Switch the ignition ON (engine off).
2. Release the electric parking brake.
3. Switch the ignition off.
4. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
5. Disconnect the electric parking brake motor gear unit connector.
ac5uuw00007506
|

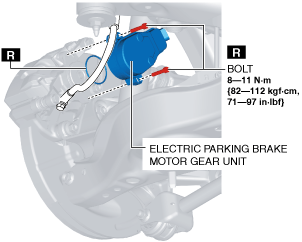

6. Remove the bolts.
ac5uuw00007507
|
7. Remove the electric parking brake motor gear unit.
8. Install in the reverse order of removal.
