•  The brake pedal operation demand warning light (red) flashes when it is necessary for the driver to depress the brake pedal.

•  The brake pedal operation demand warning light (red) flashes to promote the driver to depress the brake pedal.

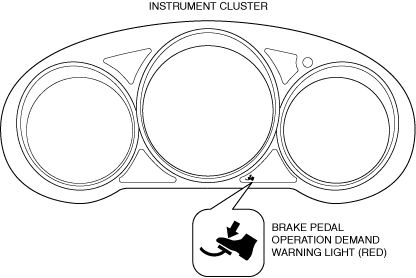

•  The brake pedal operation demand warning light (red) is integrated with the instrument cluster.

•  If a malfunction occurs in the system and the driver does not depress the brake pedal during AUTOHOLD operation, the brake pedal operation demand warning light (red) flashes.

•  If a malfunction occurs in the system and the driver does not depress the brake pedal during AUTOHOLD operation, the DSC HU/CM sends the brake pedal operation demand warning light (red) flash request signal. When the instrument cluster receives the brake pedal operation demand warning light (red) flash request signal, the ON/OFF of the transistor changes and the brake pedal operation demand warning light (red) flashes.

•  When the driver depresses the brake pedal and the brake fluid pressure is the specification of more, the brake pedal operation demand warning light (red) turns off.

Note

•  The AUTOHOLD warning sound is activated when the brake pedal operation warning light (red) flashes.

•  Not applicable
