DYNAMIC STABILITY CONTROL LOCATION INDEX

id041500800500

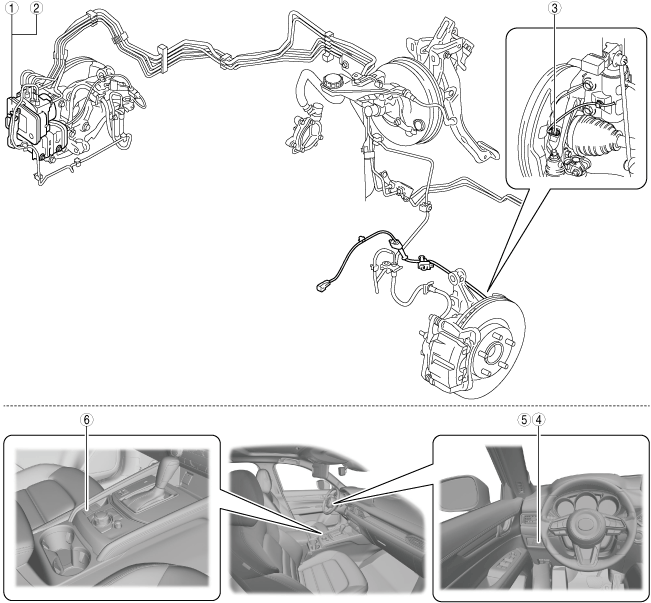

Vehicle Front Side

ac5wzw00014106

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See DSC HU/CM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	TCS OFF switch (2WD) (See TCS OFF SWITCH REMOVAL/INSTALLATION [2WD].) (See TCS OFF SWITCH INSPECTION [2WD].)
5	Off-Road Traction Assist switch (4WD) (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [4WD].) (See OFF-ROAD TRACTION ASSIST SWITCH INSPECTION [4WD].)
6	AUTO HOLD switch (See AUTO HOLD SWITCH REMOVAL/INSTALLATION.) (See AUTO HOLD SWITCH INSPECTION.)

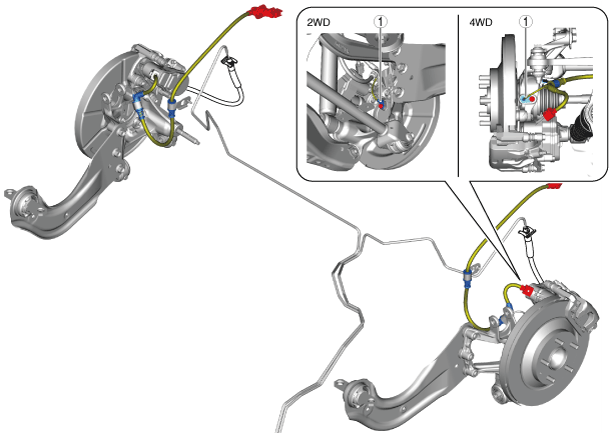

Vehicle Rear Side

ac5wzw00009837

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [4WD].)
