AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)]

id0517i21172z4

Special Service Tool (SST)

1.  : Mazda SST number 2.  : Global SST number
1: 49 C017 5A0 2: –   Engine support set		1: 49 UN30 3050 2: 303–050   Engine lifting brackets		1: 49 L017 5A0 2: –   Support hanger

Replacement Part

Caution

•  If the automatic transaxle has been replaced, perform TCM configuration. (See TCM CONFIGURATION [GW6A-EL, GW6AX-EL].)

•  If the automatic transaxle has been replaced, perform initial learning. (See INITIAL LEARNING [GW6A-EL, GW6AX-EL].)

•  Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

3.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

•  Air cleaner cover

•  Air cleaner element

•  Fresh-air duct

•  Air cleaner case

•  Air hose

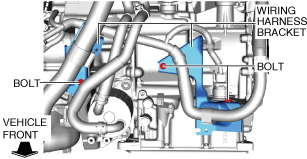

5.  Remove the harness bracket installation bolts from the transaxle.

ac5uuw00010088

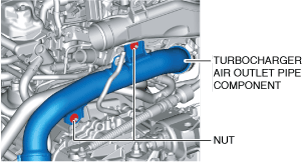

6.  Remove the turbocharger air outlet pipe component installation nuts.

ac5uuw00009937

7.  Remove the water pipe bracket installation bolts.

ac5wzw00014482

8.  Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

9.  Disconnect the electric AT oil pump connector. (With i-stop)

ac5wzw00013030

10.  Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing. (With i-stop)

ac5wzw00013031

11.  Disconnect the control valve body connector.

Caution

•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.

•  Water or foreign matter entering the connector can cause a poor connection or corrosion. Be careful not to allow water droplets or foreign matter to get on the connector when disconnecting it.

ac5uuw00009939

12.  Disconnect the ground cable.

ac5uuw00009940

13.  Disconnect the selector cable from the transaxle. (See SELECTOR CABLE REMOVAL/INSTALLATION.)

14.  Remove the selector cable bracket.

ac5uuw00009941

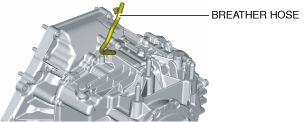

15.  Disconnect the breather hose from the transaxle.

ac5uuw00009942

16.  Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

17.  Disconnect the intermediate shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

18.  Remove the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

19.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

20.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

21.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

22.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GW6A-EL, GW6AX-EL].)

23.  Disconnect the oil cooler from the transaxle with the hose connected. (Except Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)].)

24.  Disconnect the water hose from the oil cooler. (Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)].)

25.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

26.  Remove the blind cover.

ac5uuw00009943

27.  Hold the crankshaft pulley to prevent drive plate from rotating.

ac4ccw00002081

28.  Remove the torque converter nuts from the starter installation hole.

Note

•  There are six installation nuts.

ac5uuw00009944

29.  Disconnect the front ABS wheel-speed sensors from the steering knuckles. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

30.  Disconnect the clips securing the brake hose from the front shock absorbers. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].)

31.  Disconnect the tie-rod ends from the steering knuckles. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

32.  Disconnect the front lower arms from the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

33.  Disconnect the front stabilizer control links from the front stabilizer. (See FRONT STABILIZER REMOVAL/INSTALLATION.)

34.  Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

35.  Remove the front drive shaft (RH) from the transfer. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

36.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

37.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

38.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)].)

39.  Remove the No.1 engine mounting bracket component.

ac5uuw00009945

40.  Install the SST using the following procedures.

ac5wzw00004357

Caution

•  Refer to the SST instruction manual for the basic handing procedure.

(1)  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(4)  Remove the keyless beeper. (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(5)  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

(6)  Protect the positions shown in the area using tape.

ac5wzw00002884

(7)  To enable installation of the SST, remove the bolts and clip shown in the figure and set the wiring harness bracket aside.

ac5wzw00013299

(8)  To enable installation of the SST, disconnect the clip shown in the figure from the protector and set the vacuum hose and the fuel hose aside.

ac5wzw00013300

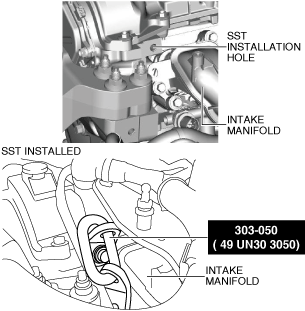

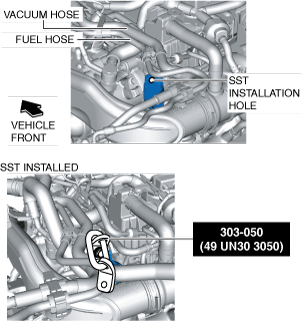

(9)  Install the SST using part number 99794 1025 or an M10—1.25, length 25 mm {0.98 in} bolt as shown in the figure.

Engine front side

ac5uuw00010089

Tightening torque

38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}

Engine rear side

ac5uuw00010090

Tightening torque

38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}

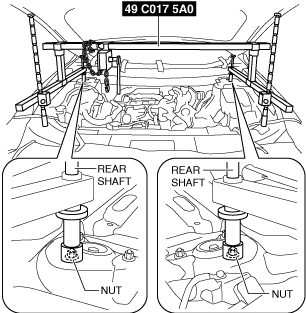

(10)  As shown in the figure, set the rear shafts of the SST to the left and right shock absorber nuts.

ac9uuw00008970

(11)  As shown in the figure, set the front shafts of the SST to the left and right bolts.

ac5wzw00013301

(12)  Install the SST (49 L017 5A0) to the SST (49 C017 5A0) as shown in the figure.

ac9uuw00008972

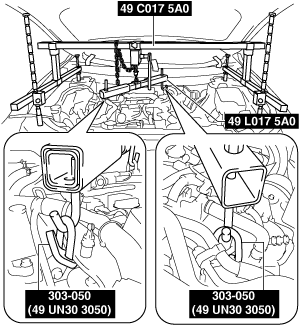

(13)  Install the SST (49 L017 5A0) to the SST (49 UN30 3050) with the hook of the SST (49 L017 5A0) facing outward.

ac9uuw00008973

(14)  Adjust the height of the left and right side bars so that they are leveled, then tighten each part of the SST.

(15)  Apply tension to the chain to secure the engine.

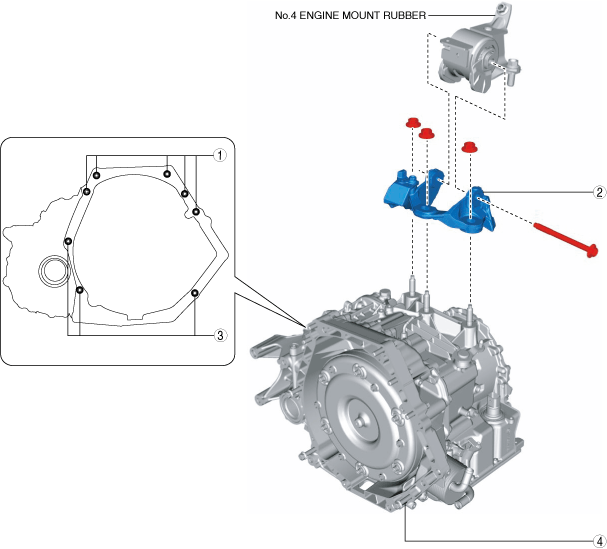

41.  Remove in the order shown in the figure.

Warning

•  Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.

Caution

•  To prevent the torque converter and transaxle from separating, remove the transaxle without tilting it toward the torque converter.

ac5uuw00009949

1	Transaxle mounting bolts (upper side)
2	No.4 engine mount bracket (See No.4 engine mount bracket removal note.)
3	Transaxle mounting bolts (lower side) (See No.4 engine mount bracket removal note.)
4	Transaxle (See No.4 engine mount bracket removal note.) (See Transaxle mounting bolt removal note.)

No.4 engine mount bracket removal note

Caution

•  A slot has been adopted for the No.4 engine mount bracket installation hole. If the No.4 engine mount bracket is deviated from the original position when installing the No.4 engine mount, engine noise or vibration could increase. When removing the No.4 engine mount, place alignment marks on the No.4 engine mount bracket so that they can be assembled to the same positions as before removal.

1.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac5uuw00006427

Note

•  Paint so that the outline of the nut is framed on the bracket side.

2.  Remove the No.4 engine mount bracket.

Transaxle mounting bolt removal note

Warning

•  Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

1.  Adjust the SST and lean the engine toward the transaxle.

ac9uuw00008972

2.  Support the transaxle on a jack.

ac5wzw00004369

3.  Remove the transaxle mounting bolts (lower side).

4.  Remove the transaxle.

Installation

1.  If the transaxle is replaced with a new one, perform the following procedure.

(1)  Remove the shipping plug from the new transaxle.

(2)  Remove the plug from the transaxle removed from the vehicle.

(3)  Install the plug and washer that were removed to the new transaxle.

ac9uuw00011693

Caution

•  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

2.  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the starter installation hole.

ac5uuw00009950

3.  Install the transaxle mounting bolts.

ac5wzw00004371

4.  Tighten the stud bolts for the transaxle.

ac5wzw00004372

5.  Install the No.4 engine mount bracket to No.4 engine mount rubber, and temporarily tighten the installation bolt.

ac5uuw00006428

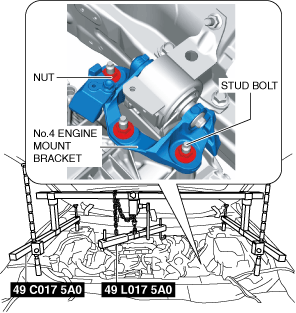

6.  Lift up the transaxle using the SSTs, pass the transaxle stud bolts through the No.4 engine mount bracket, and temporarily tighten the No.4 engine mount bracket installation nuts.

ac5uuw00010091

7.  Install the No.1 engine mount bracket component, and tighten the installation bolts in the order shown in the figure.

ac5uuw00009951

8.  Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)].)

9.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

10.  Temporarily tighten the No.1 engine mount rubber installation bolts.

ac5wzw00009228

11.  Align the positions of the No.4 engine mount bracket installation nuts with the No.4 engine mount bracket.

ac5uuw00006432

12.  Tighten the No.4 engine mount bracket installation nuts and bolt in the order shown in the figure.

ac5uuw00010092

13.  Tighten the No.1 engine mount rubber installation bolts in the order shown in the figure.

ac5wzw00009231

14.  Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

15.  Remove the SSTs.

16.  Install the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

17.  Install the keyless beeper. (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

18.  Install the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

19.  Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

20.  Install the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

21.  Connect the clip shown in the figure to the protector.

ac5wzw00013300

22.  Install the bolts and clip shown in the figure.

ac5wzw00013302

23.  Fix the crankshaft pulley to lock the torque converter against rotation.

ac4ccw00002081

Caution

•  After temporarily tightening the torque converter installation nut uniformly, tighten it to the specified torque.

24.  Tighten the torque converter installation nut.

Note

•  There are six installation nuts.

ac9uuw00008964

25.  Install the blind cover.

ac5uuw00009943

26.  Install the starter. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

27.  Install the front drive shaft (RH) to the transfer. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

28.  Connect the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

29.  Connect the front stabilizer control links to the front stabilizer. (See FRONT STABILIZER REMOVAL/INSTALLATION.)

30.  Connect the front lower arms to the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION)

31.  Connect the tie-rod ends to the steering knuckles. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

32.  Connect the clips securing the brake hose to the front shock absorbers. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER].)

33.  Connect the front ABS wheel-speed sensors to the steering knuckles. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

34.  Connect the water hose to the oil cooler. (Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)].)

35.  Connect the oil cooler to the transaxle with the hose connected. (Except Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-G 2.5T)].)

36.  Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

37.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

38.  Install the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

39.  Connect the intermediate shaft to the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

40.  Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

41.  Connect the breather hose to the transaxle.

ac5uuw00009942

42.  Install the selector cable bracket.

ac5uuw00009953

43.  Connect the selector cable to the transaxle. (See SELECTOR CABLE REMOVAL/INSTALLATION.)

44.  Connect the ground cable as shown in the figure.

ac5uuw00010094

45.  Connect the control valve body connector.

Caution

•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.

•  Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.

•  Insert the connector straight as the connector terminal could be damaged.

•  Rotate the connector lever until a click is heard.

ac5uuw00009939

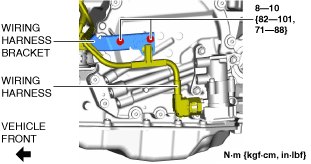

46.  Install the wiring harness bracket. (With i-stop)

ac5wzw00013032

47.  Connect the electric AT oil pump connector. (With i-stop)

ac5wzw00013030

48.  Install the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

49.  Install the water pipe bracket installation bolts.

ac5wzw00014483

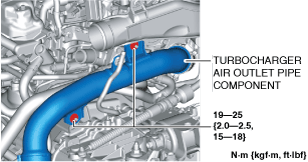

50.  Install the turbocharger air outlet pipe component installation nuts.

ac5uuw00010096

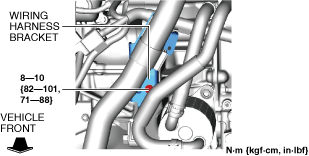

51.  Install the wiring harness bracket.

ac5uuw00010097

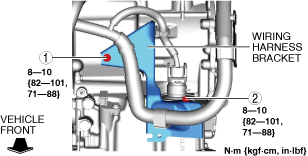

52.  Tighten the wiring harness bracket installation bolts in the order shown in the figure.

ac5uuw00010098

53.  Install the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

54.  Install the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

•  Air cleaner cover

•  Air cleaner element

•  Fresh-air duct

•  Air cleaner case

•  Air hose

55.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

56.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

57.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GW6A-EL, GW6AX-EL].)

58.  Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

59.  Perform the “TCM configuration” (Automatic transaxle replacement). (See TCM CONFIGURATION [GW6A-EL, GW6AX-EL])

60.  Perform the “Initial Learning” (automatic transaxle replacement). (See INITIAL LEARNING [GW6A-EL, GW6AX-EL].)

61.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [GW6A-EL, GW6AX-EL].)
