BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

Caution

• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

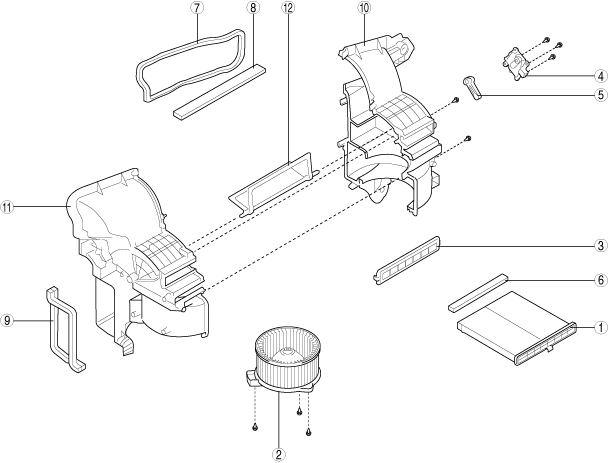

1. Disassemble in the order indicated in the table.

ac5uuw00005196

1

Air filter

2

Blower motor

3

Cover

4

Air intake actuator

5

Air intake link

6

Polyurethane (1)

7

Polyurethane (2)

8

Polyurethane (3)

9

Polyurethane (4)

10

Blower case (1)

11

Blower case (2)

12

Air intake door

2. Assemble in the reverse order of disassembly.

1	Air filter
2	Blower motor
3	Cover
4	Air intake actuator
5	Air intake link
6	Polyurethane (1)
7	Polyurethane (2)
8	Polyurethane (3)
9	Polyurethane (4)
10	Blower case (1)
11	Blower case (2)
12	Air intake door
