REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id071100803037

Replacement Part

O-ring (cooler hose (HI))

Quantity: 2

Location of use: Cooler hose (HI)
O-ring (cooler hose (LO))

Quantity: 2

Location of use: Cooler hose (LO)
O-ring (cooler pipe)

Quantity: 2

Location of use: Cooler pipe


L.H.D.


Cooler hose (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

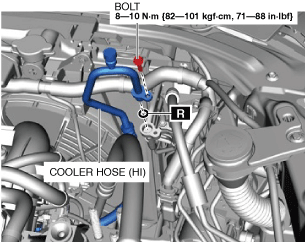

4.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008792

5.  Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008793

7.  Remove the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler hose (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

4.  Remove the nut.

ac5wzw00008794

5.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008795

6.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

7.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008796

8.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

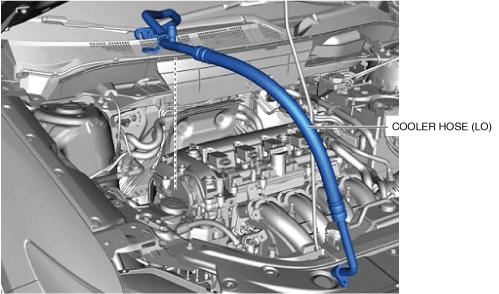

9.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac5wzw00008797

10.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

11.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

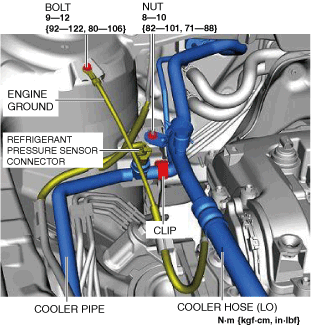

4.  Remove the nut.

ac5wzw00008798

5.  Remove the clip.

6.  Disconnect the refrigerant pressure sensor connector.

7.  Remove the bolt.

8.  Disconnect the engine ground.

9.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008795

10.  Disconnect the cooler pipe and cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

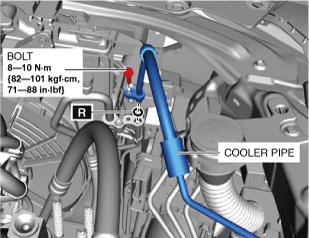

11.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008799

12.  Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

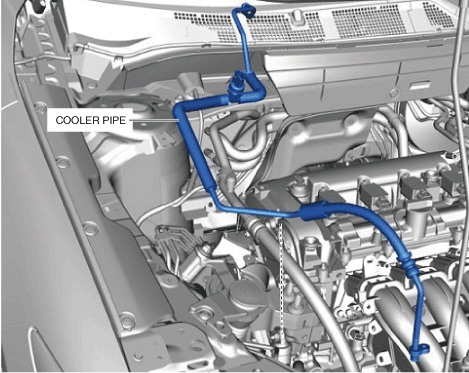

13.  Remove the cooler pipe. Do not allow compressor oil to spill.

ac5wzw00008800

14.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

15.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Refrigerant line removal note

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

Replaced refrigerant line

Supplemental compressor oil amount (approx. quantity)
Cooler Hose (HI)
1 ml {1 cc, 0.03 US fl oz}
Cooler Hose (LO)
3 ml {3 cc, 0.1 US fl oz}
Cooler Pipe
1 ml {1 cc, 0.03 US fl oz}


R.H.D.


Cooler hose (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

4.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008792

5.  Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008793

7.  Remove the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler hose (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

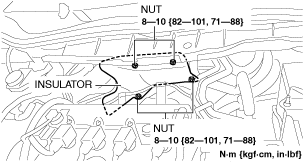

4.  Remove the nuts.

ac5wzw00008801

5.  Remove the insulator.

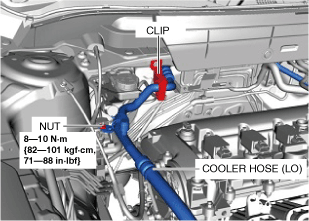

6.  Remove the nut.

ac5wzw00008802

7.  Remove the cooler hose (LO) from the clip.

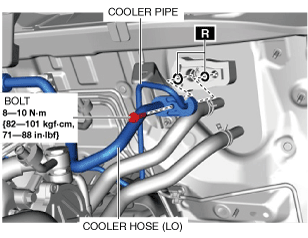

8.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008803

9.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

10.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008796

11.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

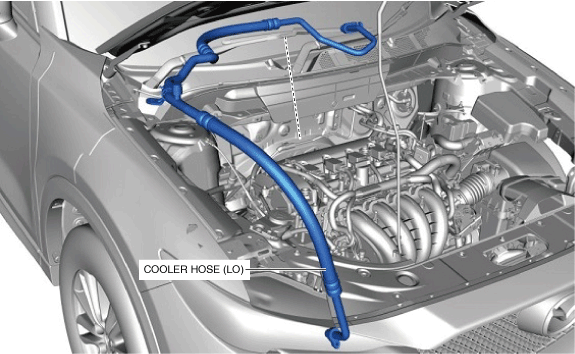

12.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac5wzw00008804

13.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

14.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

4.  Remove the nuts.

ac5wzw00008801

5.  Remove the insulator.

6.  Remove the bolt.

ac5wzw00008805

7.  Disconnect the engine ground.

8.  Disconnect the refrigerant pressure sensor connector.

9.  Remove the nut.

ac5wzw00008802

10.  Remove the cooler hose (LO) from the clip.

11.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008803

12.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

13.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008796

14.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

15.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac5wzw00008804

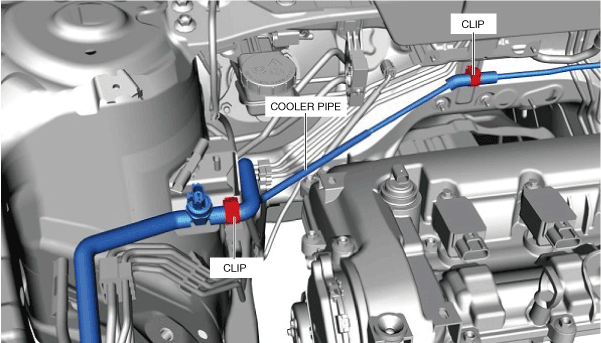

16.  Remove the cooler pipe from the clips.

ac5wzw00008806

17.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00008799

18.  Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

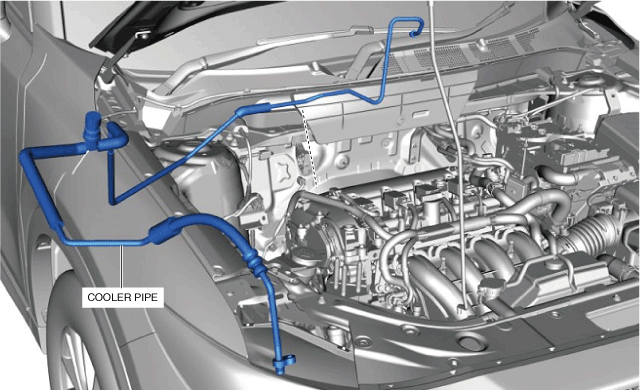

19.  Remove the cooler pipe. Do not allow compressor oil to spill.

ac5wzw00008807

20.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

21.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Refrigerant line removal note

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

Replaced refrigerant line

Supplemental compressor oil amount (approx. quantity)
Cooler Hose (HI)
1 ml {1 cc, 0.03 US fl oz}
Cooler Hose (LO)
3 ml {3 cc, 0.1 US fl oz}
Cooler Pipe
1 ml {1 cc, 0.03 US fl oz}
