AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1801500


L.H.D.

Caution
•  If the lever position exceeds the operation range shown in the figure, the circuit in the actuator could be damaged. Always perform an actuator operation inspection with the lever movement within the range shown in the figure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

4.  Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation
B
A
FRESH → RECIRCULATE
A
B
RECIRCULATE → FRESH

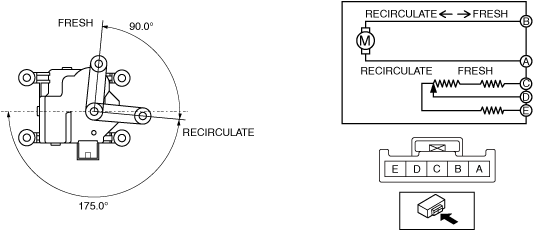

ac5uuw00005810
•  If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

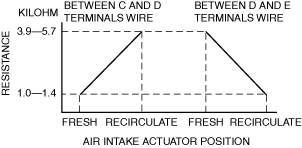

5.  Verify that the resistance between terminals C and D, D and E matches the air intake actuator operation as shown in the graph.

ac5wzw00010421

•  If the operation condition and resistance are not normal, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)


R.H.D.

Caution
•  If the lever position exceeds the operation range shown in the figure, the circuit in the actuator could be damaged. Always perform an actuator operation inspection with the lever movement within the range shown in the figure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

4.  Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation
A
B
FRESH → RECIRCULATE
B
A
RECIRCULATE → FRESH

ac5wzw00010155
•  If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

5.  Verify that the resistance between terminals C and D, D and E matches the air intake actuator operation as shown in the graph.

ac5wzw00010156

•  If the operation condition and resistance are not normal, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
