REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

LH

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

4.  Disconnect the connector. (with rear buckle switch)

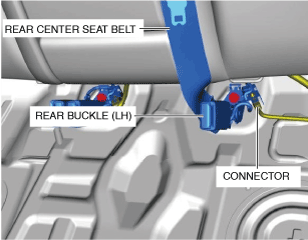

ac5wzw00008935

5.  Remove the bolt.

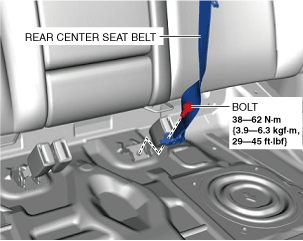

ac5wzw00014496

6.  Remove the rear center seat belt.

7.  Remove the bolt.

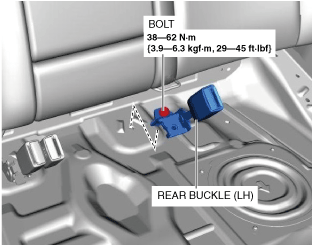

ac5wzw00014497

8.  Remove the rear buckle (LH).

9.  Install in the reverse order of removal. (See Rear buckle installation note.)

Rear buckle installation note

1.  After installing the rear seat cushion, place the rear center seat belt as shown in the figure.

ac5wzw00008938

RH

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

4.  Disconnect the connector. (with rear buckle switch)

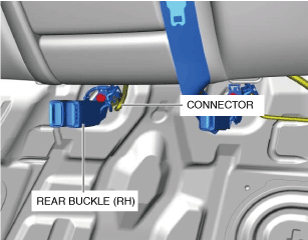

ac5wzw00008939

5.  Remove the bolt.

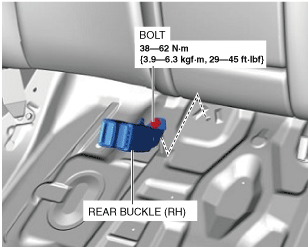

ac5wzw00014498

6.  Remove the rear buckle (RH).

7.  Install in the reverse order of removal. (See Rear buckle installation note.)

Rear buckle installation note

1.  After installing the rear seat cushion, place the rear center seat belt as shown in the figure.

ac5wzw00008938
