DTC INSPECTION [AUDIO UNIT]

id09021q440500

Note

•  The audio system DTC can be verified using the on-board diagnostic test mode to activate the on-board diagnostic function by operating audio unit.

•  All of DTCs displayed by the DTC inspection is recorded in the audio repair order form.

•  If an audio unit malfunction is suspected, select For Audio below.

•  If a Bluetooth^® unit malfunction is suspected, select For Bluetooth^® Unit below.

For Audio

1.  Switch the ignition to ACC or ON (engine off or on).

2.  Turn the audio unit power off.

3.  While pressing the POWER/VOLUME button, press the MEDIA/SCAN button and FM/AM/CLOCK button for 3 s or more.

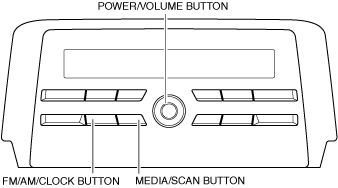

ac5uuw00007833

•  If a DTC is displayed, repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [AUDIO UNIT].)

Note

•  A maximum of 3 DTCs are displayed.

•  If several DTCs are displayed, press the TUNE button to switch the display.

•  If there are no DTCs, "No Err" is displayed.

4.  After completion of repairs, clear all DTCs are stored in the audio unit. (See CLEARING DTC [AUDIO UNIT].)

For Bluetooth^® Unit

1.  Switch the ignition to ACC or ON (engine off or on).

2.  While pressing the POWER/VOLUME button, press the PRESET button 4 and FOLDER button (down) for 3 s or more.

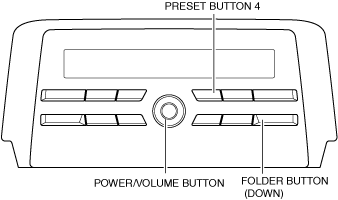

ac5uuw00007834

•  If a DTC is displayed, repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [AUDIO UNIT].)

ac5uuw00007764

Note

•  A maximum of 12 DTCs can be displayed.

•  If several DTCs are displayed, press the TUNE button to switch the display.

•  If there are no DTCs, "No Err" is displayed.

•  If the TUNE button (down) is operated while the last DTC or "No Err" is displayed, the software version is displayed.

•  If the TUNE button (down) is operated while the software version is displayed, the connected unit information is displayed.

3.  After completion of repairs, clear all DTCs stored in the Bluetooth^® unit. (See CLEARING DTC [AUDIO UNIT].)
