DTC B1495:55 [POWER LIFTGATE (PLG) CONTROL MODULE]

id0902o8977800

Description

Configuration data unmatched with foot-motion detection unit
Detection condition
•  Configuration data of the power liftgate (PLG) control module and foot-motion detection unit are not matched.
Fail-safe
•  Stops the hands-free function operation.
Possible cause
Note
•  To correctly write the configuration data sent from the instrument cluster to the power liftgate (PLG) control module to the power liftgate (PLG) control module, 30 s or more need to have elapsed since the ignition was switched ON (engine off or on).
•  DTCs are stored in the instrument cluster.
―  Instrument cluster configuration not implemented
―  Instrument cluster internal memory malfunction
•  Foot-motion detection unit connector malfunction
•  Power liftgate (PLG) control module connector malfunction
•  Short to ground in wiring harness between power liftgate (PLG) control module terminal 1C and foot-motion detection unit terminal 1C
•  Short to power supply in wiring harness between power liftgate (PLG) control module terminal 1C and foot-motion detection unit terminal 1C
•  Open circuit in wiring harness between power liftgate (PLG) control module terminal 1C and foot-motion detection unit terminal 1C
•  Instrument cluster configuration data error
•  Foot-motion detection unit malfunction
•  Power liftgate (PLG) control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
VERIFY IF OTHER DTCs DISPLAYED FOR POWER LIFTGATE (PLG) CONTROL MODULE
•  Clear the DTC for the power liftgate (PLG) control module using the M-MDS.
•  Retrieve the power liftgate (PLG) control module DTCs using the M-MDS.
•  Is DTC U3000:49 displayed?
Yes
Replace the power liftgate (PLG) control module, then go to Step 10.
(See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION.)
No
Go to the next step.
2
VERIFY INSTRUMENT CLUSTER DTCs
•  Retrieve the instrument cluster DTCs using the M-MDS.
•  Is the DTC displayed?
Yes
Repair the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [INSTRUMENT CLUSTER].)
No
Go to the next step.
3
VERIFY FOOT-MOTION DETECTION UNIT CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Disconnect the foot-motion detection unit connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 10.
4
INSPECT POWER LIFTGATE (PLG) CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the power liftgate (PLG) control module connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 10.
5
INSPECT FOOT-MOTION DETECTION UNIT CIRCUIT FOR SHORT TO GROUND
•  Verify that the foot-motion detection unit and power liftgate (PLG) control module connectors are disconnected.
•  Inspect for continuity between foot-motion detection unit terminal 1C (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Refer to the wiring diagram and verify whether or not there is a common connector between foot-motion detection unit terminal 1C and power liftgate (PLG) control module terminal 1C.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to ground.
Go to Step 10.
No
Go to the next step.
6
INSPECT FOOT-MOTION DETECTION UNIT CIRCUIT FOR SHORT TO POWER SUPPLY
•  Verify that the foot-motion detection unit and power liftgate (PLG) control module connectors are disconnected.
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).

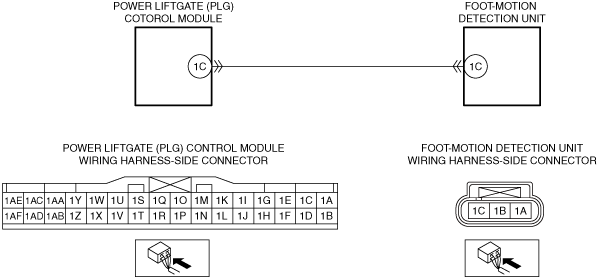

•  Measure the voltage at the following foot-motion detection unit terminal 1C (wiring harness-side).
•  Is the voltage 0 V?
Yes
Go to next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between foot-motion detection unit terminal 1C and power liftgate (PLG) control module terminal 1C.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to power supply.
Go to Step 10.
7
INSPECT FOOT-MOTION DETECTION UNIT CIRCUIT FOR OPEN CIRCUIT
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Verify that the foot-motion detection unit and power liftgate (PLG) control module connectors are disconnected.
•  Inspect for continuity between the following foot-motion detection unit terminal 1C (wiring harness-side) and power liftgate (PLG) control module terminal 1C (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between foot-motion detection unit terminal 1C and power liftgate (PLG) control module terminal 1C.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has an open circuit.
Go to Step 10.
8
RESET INSTRUMENT CLUSTER CONFIGURATION DATA
•  Using the M-MDS, perform the instrument cluster configuration with the As-Built data.
•  Clear the power liftgate (PLG) control module DTCs using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 30 s or more.
•  Retrieve the power liftgate (PLG) control module DTCs using the M-MDS.
•  Is the same Pending DTC present?
Yes
Using the M-MDS, perform the instrument cluster configuration (using As-Built data) again, then go to the next step.
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).)
No
Go to Step 11.
9
VERIFY IF MALFUNCTIONING LOCATION IS FOOT-MOTION DETECTION UNIT DEPENDING ON REPEATABILITY
•  Always reconnect all disconnected connectors.
•  Connect the negative battery terminal.
•  Clear the DTC for the power liftgate (PLG) control module using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 30 s or more.
•  Retrieve the power liftgate (PLG) control module DTCs using the M-MDS.
•  Is the same Pending DTC present?
Yes
Replace the foot-motion detection unit, then go to the next step.
(See FOOT-MOTION DETECTION UNIT REMOVAL/INSTALLATION.)
No
Go to Step 11.
10
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Clear the DTC for the power liftgate (PLG) control module using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 30 s or more.
•  Retrieve the power liftgate (PLG) control module DTCs using the M-MDS.
•  Is the same Pending DTC present?
Yes
Replace the power liftgate (PLG) control module, then go to the next step.
(See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION.)
No
Go to the next step.
11
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [POWER LIFTGATE (PLG) CONTROL MODULE].)
No
DTC troubleshooting completed.
