FUEL-FILLER LID ADJUSTMENT

id091000800200

1. Verify that the gap and height difference between the fuel-filler lid and body.

2. Loosen the bolts and adjust the fuel-filler lid. (See FUEL-FILLER LID REMOVAL/INSTALLATION.)

ac5wzw00011085

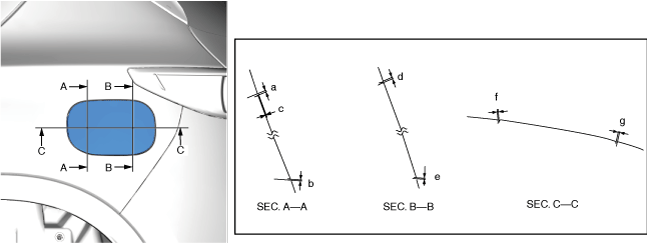

Standard clearance

a: 1.70—3.70 mm {0.067—0.145 in}

b: 0.95—2.95 mm {0.038—0.116 in}

c: -0.5—1.5 mm {-0.01—0.05 in}

d: 1.69—3.69 mm {0.067—0.145 in}

e: 1.12—3.12 mm {0.045—0.122 in}

f: 1.10—3.10 mm {0.044—0.122 in}

g: 1.59—3.59 mm {0.063—0.141 in}
