SHROUD UPPER MEMBER REMOVAL/INSTALLATION

id091000889800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Horn (See HORN REMOVAL/INSTALLATION.)

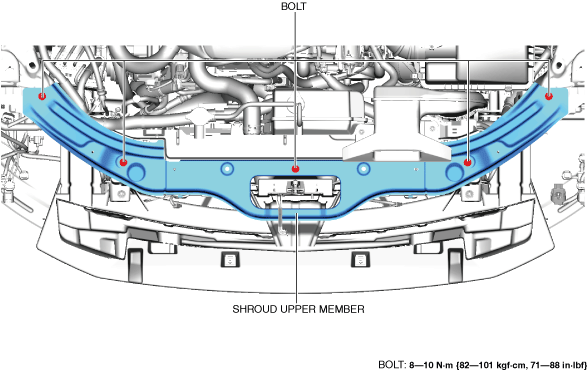

3.  Remove the bolts.

ac5wzw00011157

4.  Remove the shroud upper member.

5.  Install in the reverse order of removal.
