BONNET DISASSEMBLY/ASSEMBLY

id091000899800

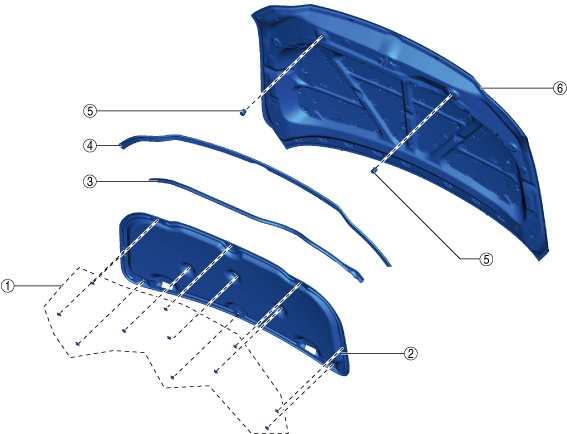

1.  Disassemble in the order indicated in the table.

ac5wzw00011158

1	Fastener
2	Bonnet insulator
3	Parting seal weatherstrip
4	Shroud seal weatherstrip
5	Stop rubber
6	Bonnet

2.  Assemble in the reverse order of disassembly.
