FRONT DOOR CHECKER REMOVAL/INSTALLATION

id091100520400

1.  Fully close the front door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

ac5wzw00014177

4.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

5.  Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

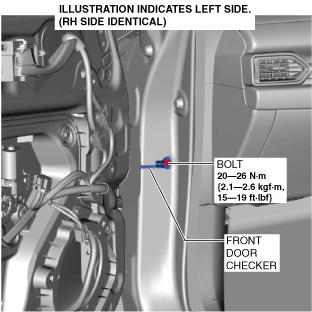

6.  Remove the bolt.

ac5wzw00014178

7.  Remove the nuts.

ac5wzw00014179

8.  Pull the front door checker out of the front door speaker installation hole.

9.  Install in the reverse order of removal.
