REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION

id091300814000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk boad. (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Remove the sub-trunk. (See SUB-TRUNK REMOVAL/INSTALLATION.)

4.  Fold the rear seat back (LH/RH).

5.  Disconnect the USB power outlet conector.

6.  Disconnect the rear seat warmer control unit conector.

7.  Remove the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

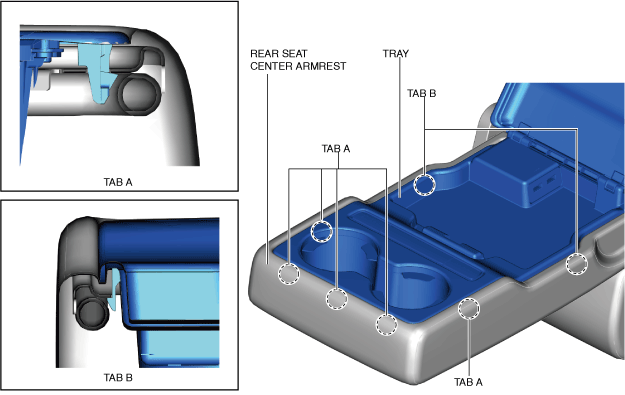

8.  Remove the tab A and B.

ac5uuw00007304

9.  Remove the USB power outlet. (See USB POWER OUTLET REMOVAL/INSTALLATION)

10.  Disconnect the connector.

ac5uuw00007367

Caution

•  If a C-ring is damaged while removing or installing the rear seat center armrest trim and rear seat center armrest, it may not be possible to install the rear seat center armrest trim and rear seat center armrest normally. When removing or installing the rear seat center armrest trim and rear seat center armrest, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

11.  Remove the C-rings.

ac5wzw00013757

12.  Remove the rear seat center armrest trim.

13.  Install in the reverse order of removal.
