KEYLESS ANTENNA REMOVAL/INSTALLATION

id091400514900

With Advanced Keyless Entry System

Vehicle interior, front

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(3)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(4)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Disconnect the connector from the keyless antenna.

ac5uuw00005908

Caution

•  Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

4.  While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the instrument panel.

ac5uuw00005909

5.  Remove the keyless antenna from the instrument panel.

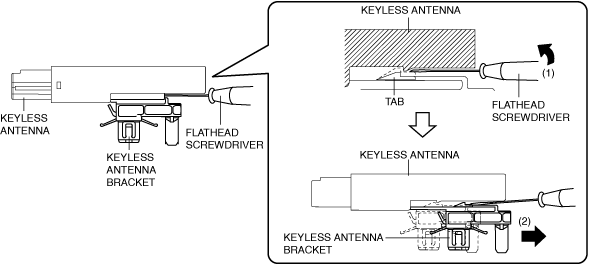

6.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac5wzw00000254

7.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.

8.  Remove the keyless antenna bracket from the keyless antenna.

9.  Install in the reverse order of removal.

Vehicle interior, rear

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

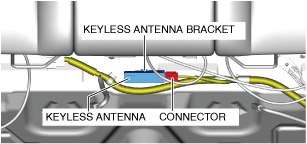

3.  Disconnect the connector from the keyless antenna.

ac5uuw00005910

Caution

•  Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

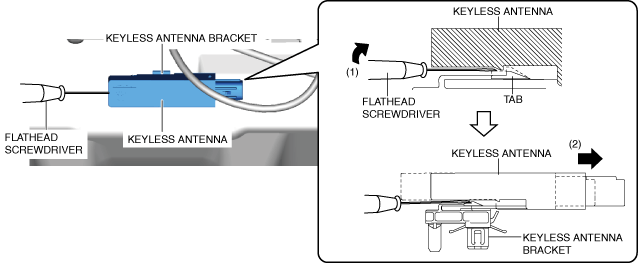

4.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac5wzw00010491

5.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.

6.  Remove the keyless antenna from the keyless antenna bracket.

7.  While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the body.

ac5uuw00005912

8.  Remove the keyless antenna bracket from the body.

9.  Install in the reverse order of removal.

Vehicle exterior, rear

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the connector from the keyless antenna.

ac5wzw00009034

Caution

•  Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

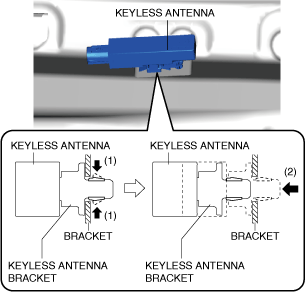

3.  While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the bracket.

ac5uuw00005914

4.  Remove the keyless antenna from the bracket.

5.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac5wzw00000254

6.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.

7.  Remove the keyless antenna bracket from the keyless antenna.

8.  Install in the reverse order of removal.

Vehicle exterior, driver's side/passenger's side

Note

•  The keyless antenna (vehicle exterior, driver's side/passenger's side) cannot be removed as a single unit because it is built into the front outer handle. To replace the keyless antenna (vehicle exterior, driver's side/passenger's side), replace the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

ac5wzw00000259

With Keyless Entry System

Vehicle interior, center

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear console panel. (See REAR CONSOLE REMOVAL/INSTALLATION.)

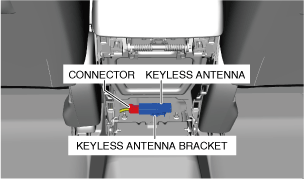

3.  Disconnect the connector from the keyless antenna.

ac5uuw00005915

Caution

•  Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

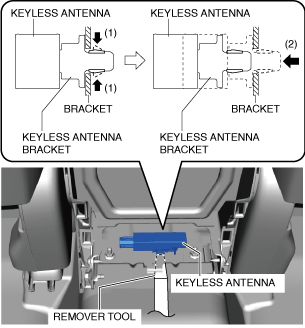

4.  Insert a remover tool into the position shown in the figure.

ac5uuw00005916

5.  While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the bracket.

6.  Remove the keyless antenna from the bracket.

7.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac5wzw00000254

8.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.

9.  Remove the keyless antenna bracket from the keyless antenna.

10.  Install in the reverse order of removal.
