ORNAMENT INSTALLATION

id091600994300

Rear Ornament

1.  Remove any grease or dirt from the ornament installation surface of the liftgate.

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

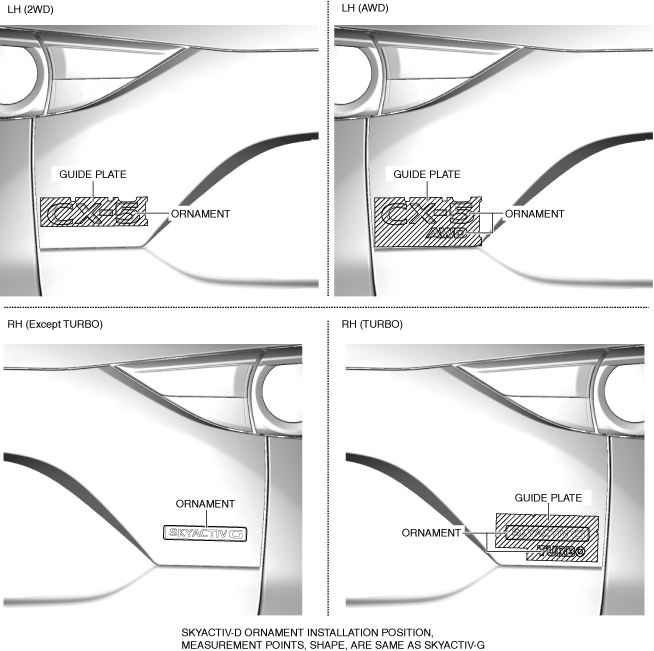

3.  Install the ornament to the position shown in the figure.

ac5uuw00011402

4.  Press the ornament with the force of 49 N {5.0 kgf, 11 lbf} to adhere the double-sided adhesive tape to the ornament installation area.

100YEARS Ornament

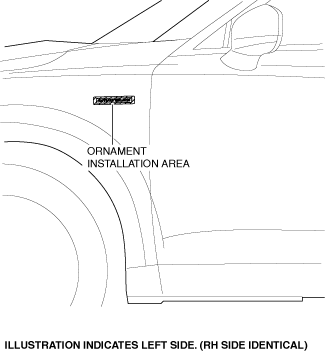

1.  Remove any grease or dirt from the ornament installation surface of the front dender.

ac5uuw00011403

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

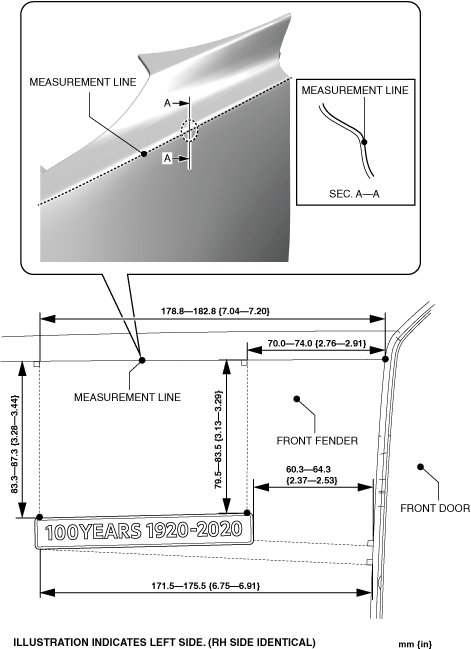

3.  Install the ornament to the position shown in the figure.

ac5wzw00014537

4.  Press the ornament with the force of 29.4 N {3.0 kgf, 6.61 lbf} to adhere the double-sided adhesive tape to the ornament installation area.
