B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

id091700802100

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(5)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welts.

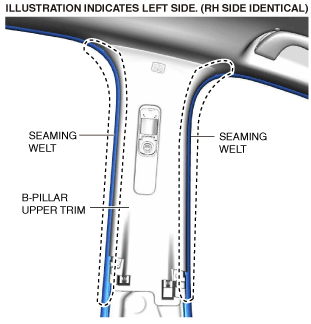

ac5uuw00006654

3.  Hold the shaded areas shown in the figure and while pulling the B-pillar upper trim in the direction of arrow (1), remove the clips, pin A, and pin B.

Caution

•  If the B-pillar upper trim is pulled forcibly when removing the clips, pin A, and pin B, the guide could be damaged. When pulling the B-pillar upper trim in the direction of arrow (1), be careful not to damage the guide.

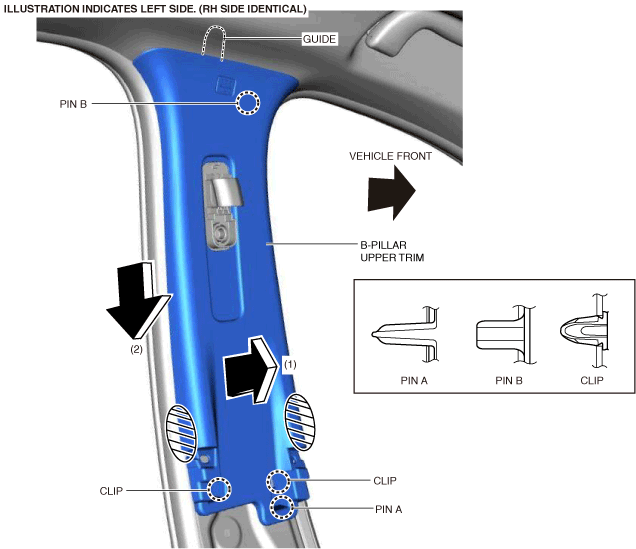

ac5uuw00006655

4.  Pull the B-pillar upper trim in the direction of arrow (2) shown in the figure, and remove it while pulling out the guide.

5.  Install in the reverse order of removal.
