TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

1.  Disconnect the negative battery terminal. (With Bose^®) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Bass-box (With Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(3)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

3.  Partially peel back the weatherstrip.

ac5uuw00005382

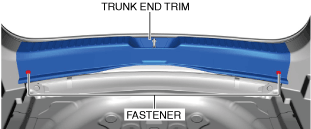

4.  Remove the fasteners.

ac5uuw00005383

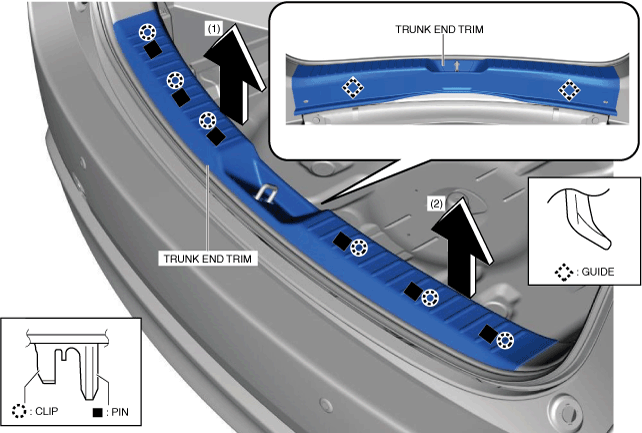

5.  Move the trunk end trim in the order of arrows (1) and (2) shown in the figure, remove it while detaching the clips, pins, and the guides.

ac5wzw00013197

6.  Install in the reverse order of removal.
