WIPER/WASHER
id091900002400
Outline
• The following systems have been adopted to the wiper and washer.
-
― Windshield wiper and washer system
― Rear wiper and washer system
― Auto wiper system (with auto wiper system)
― Washer fluid level warning system (with headlight cleaner system)
― Headlight cleaner system (with headlight cleaner system)
Specification
• A windshield wiper and washer system with continuous (low/high), auto-stop, one-touch wiper, intermittent wiper (without auto wiper system), and a windshield washer and synchronized washer have been adopted.
-
― CAN communication has been adopted to the windshield wiper and washer system.
― A windshield washer nozzle has been adopted in which the area where the washer fluid is sprayed can be adjusted.
• A rear wiper and washer system with continuous, auto-stop, and intermittent wiper, and synchronized washer have been adopted.
-
― CAN communication has been adopted to the rear wiper and washer system.
― Rear washer nozzle has been adopted in which the area where the washer fluid is sprayed can be adjusted.
• Auto wiper system has been adopted which enables fully automatic windshield wiper operation (with auto wiper system).
-
― CAN communication has been adopted to the auto wiper system.
― A rain sensor integrated with the lens has been adopted which aggregates infrared light to detect the amount of rainfall.
― A personalization feature has been adopted to the auto wiper system.
• The washer fluid-level sensor is located on the washer tank. (with washer fluid level warning system)
• A pop-up type headlight cleaner has been adopted. (with headlight cleaner system)
• Washer tank capacity:
-
― With washer fluid level warning system and headlight cleaner system: 4.5 L {4.8 US qt, 4.0 Imp qt}
― Without washer fluid level warning system and headlight cleaner system: 2.2 L {2.3 US qt, 1.9 Imp qt}
Structure/Construction

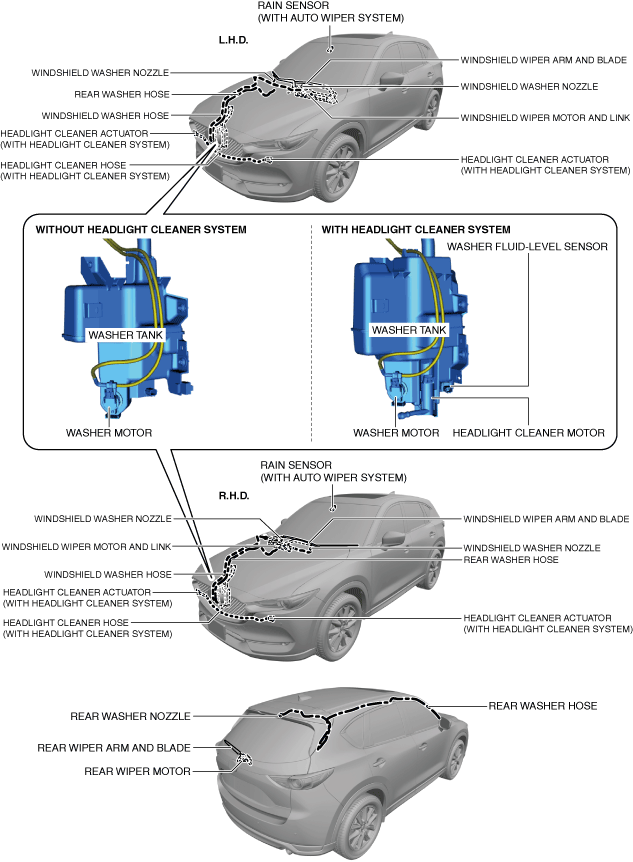

System structure
Exterior

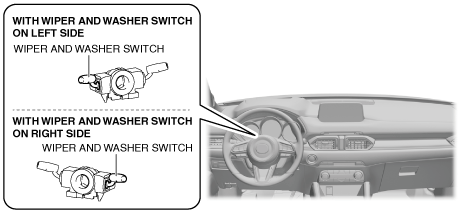

Interior
