CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY
id092000031600
Type-A

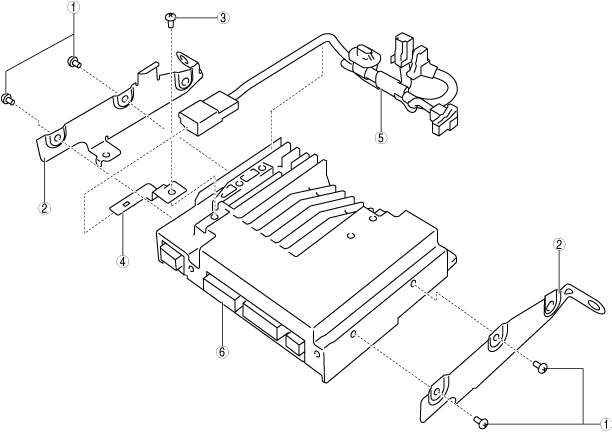

1. Disassemble in the order shown in the figure.
ac5jjw00009937
|
|
1
|
Screw A
|
|
2
|
Bracket A
|
|
3
|
Screw B
|
|
4
|
Bracket B
|
|
5
|
Short-cord
(See Short-cord Assembly Note.)
|
|
6
|
Connectivity master unit (CMU)
|
2. Assemble in the reverse order of disassembly.

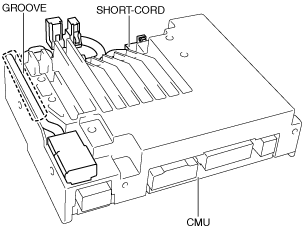

Short-cord Assembly Note
1. When assembling the short-cord, press it into the groove of the CMU.
ac5uuw00009440
|
Type-B
1. Disconnect the connector.
ac5uuw00011382
|

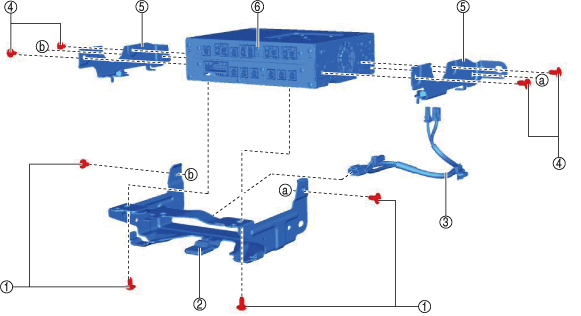

2. Disassemble in the order shown in the figure.
ac5uuw00011383
|
|
1
|
Screw A
|
|
2
|
Bracket A
|
|
3
|
Short-cord
|
|
4
|
Screw B
|
|
5
|
Bracket B
|
|
6
|
Connectivity master unit (CMU)
|
3. Assemble in the reverse order of disassembly.
