USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION [TYPE-B]

id0920004690zf

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION.)

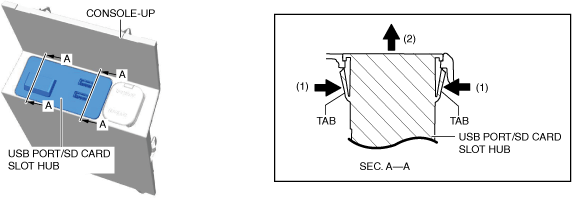

3.  While pressing the tabs of the USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the USB port/SD card slot hub from the console-up.

ac5uuw00011384

4.  Remove the USB port/SD card slot hub.

5.  Install in the reverse order of removal.
