REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200031100

Replacement part

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

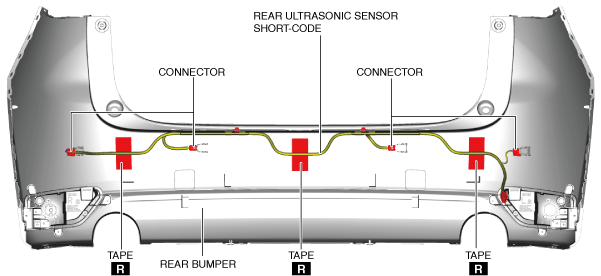

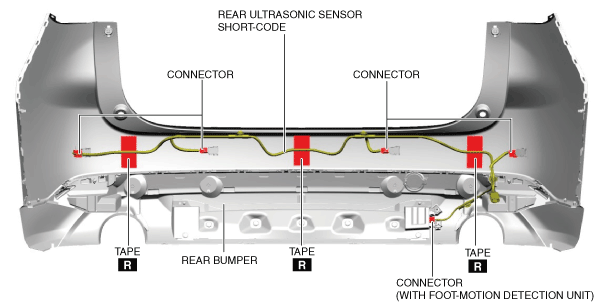

4.  Remove the tapes.

Type A

ac5wzw00009746

Type B

ac5wzw00015292

5.  Disconnect the connectors.

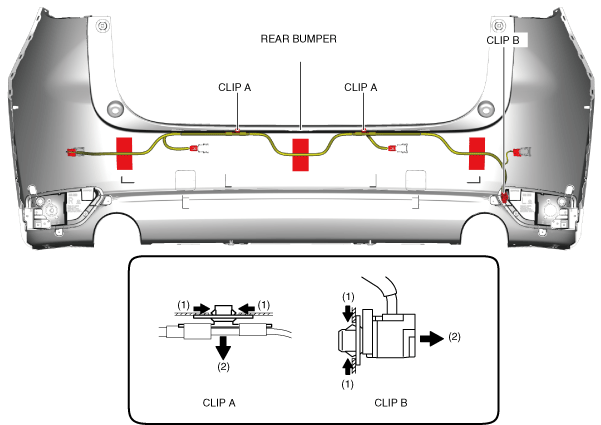

6.  Pull the clip in the direction of the arrow (2) shown in the figure while pressing the tabs of clip in the direction of the arrows (1) shown in the figure, and detach the tabs of the clip and rear bumper.

Type A

ac5wzw00015295

Type B

ac5wzw00015293

7.  Remove the rear ultrasonic sensor short-cord.

8.  Install in the reverse order of removal. (See Rear Ultrasonic Sensor Short-cord Installation Note.)

Rear Ultrasonic Sensor Short-cord Installation Note

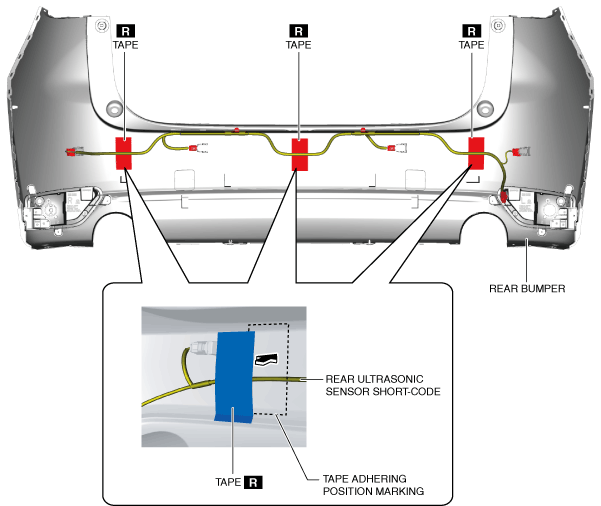

1.  Align the height of the rear ultrasonic sensor short-cord with the center of the tape adhering position marking on the rear bumper.

Type A

ac5wzw00009748

Type B

ac5wzw00015294

2.  Align the tape with the mark of the tape adhering position marking and adhere the rear ultrasonic sensor short-cord and rear bumper.
