INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE

id092200033600


Type-A

Warning
•  The personalization feature may not be set correctly if [Not Adopted.] is selected in the setting displayed on the M-MDS. Do not select [Not Adopted.] in the setting displayed on the M-MDS.

Turn And Hazard Indicator Alarm

Using M-MDS

1.  Connect the M-MDS (IDS) to DLC-2.

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

(1)  [Module Programming]
(2)  [Programmable Parameters]

3.  Select menu in the [IC].

4.  Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit
Turn Signal Volume.
The volume of the turn and hazard indicator alarm can be changed.
High
Low / High
Instrument cluster

Using center display
•  For the setting procedure of the personalization features using the center display, refer to [CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE]. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Lights-on Reminder Warning Alarm

Using M-MDS

1.  Connect the M-MDS (IDS) to DLC-2.

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

(1)  [Module Programming]
(2)  [Programmable Parameters]

3.  Select menu in the [IC].

4.  Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit
Lights-on Reminder Volume.
The volume for the lights-on reminder warning alarm can be changed.
Off
OFF / Low / High
Instrument cluster

Using center display
•  For the setting procedure of the personalization features using the center display, refer to [CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE]. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)

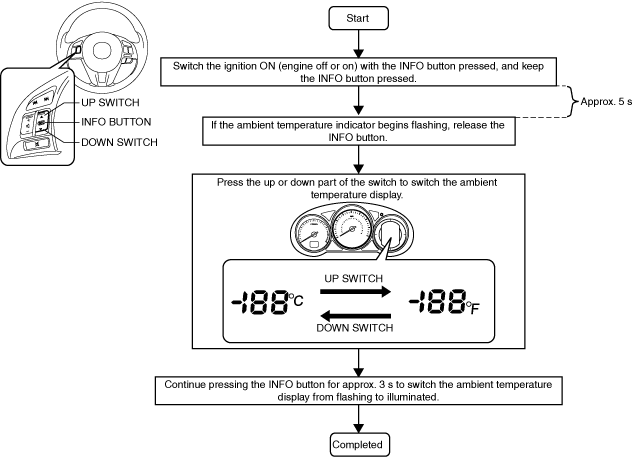

Temperature

Note
•  When the ambient temperature display is switched, the set A/C cabin temperature display is also changed.

Using instrument cluster (without center display)

ac5uuw00004024
Using center display
•  For the setting procedure of the personalization features using the center display, refer to [CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE]. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Type-B

Note
•  Refer to the [PERSONALIZATION FEATURES [(TYPE-B)]] in the workshop manual.
