TEL ANTENNA REMOVAL/INSTALLATION [TYPE-B]

id0922007027f2

TEL Antenna No.1

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

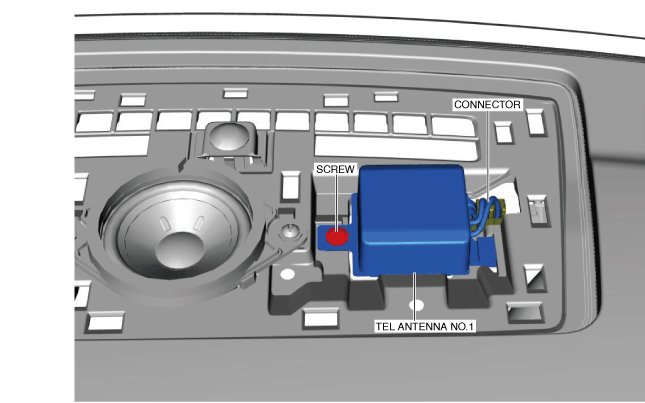

3. Remove the screw.

ac5uuw00011852

4. Disconnect the connector.

5. Remove the TEL antenna No.1.

6. Install in the reverse order of removal.

TEL Antenna No.2

• TEL antenna No.2 is integrated with the global positioning system (GPS) antenna.

• For TEL antenna No.2 removal/installation, refer to GPS ANTENNA REMOVAL/INSTALLATION. (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
